Administering connected queue managers using the REST API gateway

Prerequisites

To use the administrative REST API gateway to administer remote queue managers, you prepare the queue managers for remote administration. The gateway queue manager is then specified by setting the ibm-mq-rest-gateway-qmgr attribute in a header that is sent with the request. The request is sent through the gateway queue manager to the remote queue manager. The response is returned with a header that indicates the queue manager that was used as the gateway queue manager.

To proceed with this tutorial, you must complete the following tasks:

• Create two IBM MQ as a Service queue managers
  If you do not already have an IBM MQ as a Service queue manager, you can create one by following the steps in Getting started with IBM MQ as a Service. You should have:

  • An IBM MQ as a Service queue manager
  • Connection details downloaded in a connection_info.txt file. See Retrieving connection_info.txt if you do not have this file.
  • An admin username and apikey downloaded in a platformApiKey.json file. See Accessing platformApiKey.json if you do not have this file.

Configuration details

You should have two IBM MQ as a Service queue managers . You name the first queue manager QM1 and the second queue manager QM2.

Where:

• QM1: acts as the gateway queue manager
• QM2: acts as the remote queue manager

1. Configure communications between the gateway queue manager and the remote queue manager that you want to administer. You create a sender-receiver channel, a transmission queue, and use the listener port provided in queue manager connection properties for each queue manager:
   1. On queue manager QM1, you create following IBM MQ objects:
      • Sender channel QM1.to.QM2
      • Receiver channel QM2.to.QM1
      • Transmission queue QM2
      • listener port which is provided in the IBM MQ as a Service Queue Manager (QM1) connection information file.
   2. On queue manager QM2, you create following IBM MQ objects:
      • Sender channel QM2.to.QM1
      • Receiver channel QM1.to.QM2
      • Transmission queue QM1
      • listener port which is provided in the IBM MQ as a Service Queue Manager (QM2) connection information file.
2. After the previous steps are performed, you can observe the channels and queues created in step 1 in your IBM MQ as a Service Queue Manger Web Console. For each queue manager:
   • queues - Select Manage then ensure Queues is selected.
   • channels - Select Manage, then Communication, then click on Queue manager channels and App channels.
3. Now, you can make administrative REST API call on the remote queue manager (that is, QM2) via the gateway queue manager (that is, QM1) by setting an gateway queue manager header property on queue manager Admin REST endpoint. You have to specify the gateway queue manager in the HTTP header like ibm-mq-rest-gateway-qmgr:<GATEWAY_QM_NAME>. For example, ibm-mq-rest-gateway-qmgr:QM1 where QM1 is the gateway queue manager name.

GET https://<Admin_REST_endpoint>:<Listener_Port>/ibmmq/rest/v1/admin/qmgr/<Remote_Queue_Manager_Name>/queue

GET https://web-qm1-b779.qm2.us-preprod.mq.test.appdomain.cloud/ibmmq/rest/v1/admin/qmgr/QM2/queue

For the examples, the curl command is used, but you can use any other tool or application for making HTTP requests.

curl -u <ADMIN_MQ_USER>:<ADMIN_API_KEY> -H "Accept: application/json" -H "Content-Type: application/json" -H "ibm-mq-rest-gateway-qmgr: <GATEWAY_QUEUE_MANAGER>" <ADMIN_REST_ENDPOINT>/<REMOTE_QUEUE_MANAGER_NAME>/queue -k

Where:

• <ADMIN_MQ_USER> - this is 'mqUsername' in the file platformApiKey.json of your gateway queue manager (that is, QM1 in this case) .
• <QUEUE_MANAGER_NAME> - this is 'queueManagerName' in the file connection_info.json of your gateway queue manager (that is, QM1 in this case).
• <ADMIN_API_KEY> - this is 'apiKey' in the file platformApiKey.json of your gateway queue manager (that is, QM1 in this case).
• <ADMIN_REST_ENDPOINT> - this is 'adminREST' in the file connection_info.json of your gateway queue manager (that is, QM1 in this case).
  Note: In this case the adminREST property point will be pointing to the gateway queue manager name, replace the gateway queue manager with the remote queue manager name. e.g. - https://web-qm1-b779.qm2.us-preprod.mq.test.appdomain.cloud/ibmmq/rest/v1/admin/qmgr/QM1 replace QM1 with QM2 like https://web-qm1-b779.qm2.us-preprod.mq.test.appdomain.cloud/ibmmq/rest/v1/admin/qmgr/QM2
• <Remote_Queue_Manager_Name> - this is 'queueManagerName' in the file connection_info.json of your remote queue manager (that is, QM2 in this case).

curl -u mamgainp:xxxxxxxxxxxxxxxxxxxxxxxxxxxxxxxxxxx -H "Accept: application/json" -H "Content-Type: application/json" -H "ibm-mq-rest-gateway-qmgr: QM1" https://web-qm1-b779.qm2.us-preprod.mq.test.appdomain.cloud/ibmmq/rest/v1/admin/qmgr/QM2/queue -k

Result

An ibm-mq-rest-gateway-qmgr header is returned with the REST response. This header specifies which queue manager was used as the gateway queue manager.

Following is a snippet of the response header containing ibm-mq-rest-gateway-qmgr as one of the attribute.

Date: Mon, 04 Mar 2019 05:29:49 GMT
Content-Type: application/json
Content-Length: 4653
Connection: keep-alive
X-Powered-By: Servlet/3.1
Cache-Control: no-cache, no-store, must-revalidate
Content-Language: en-US
ibm-mq-rest-gateway-qmgr: QM1
Strict-Transport-Security: max-age=31536000; includeSubDomains

Retrieving connection_info.txt

To retrieve the connection_info.txt file containing queue manager connection details, complete the following steps:

1. Navigate to your IBM MQ as a Service UI by following the instructions in Getting started with IBM MQ as a Service.
2. From the list of your queue managers, click on the queue manager you want to administer.
3. Click Connection information.

4. Download the file in 'JSON text format'

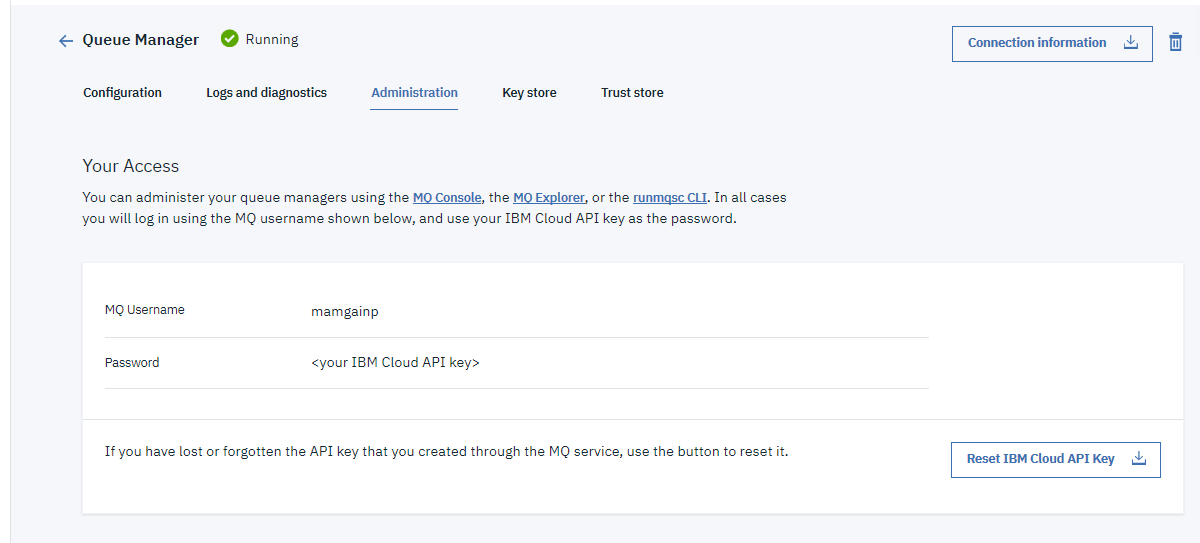

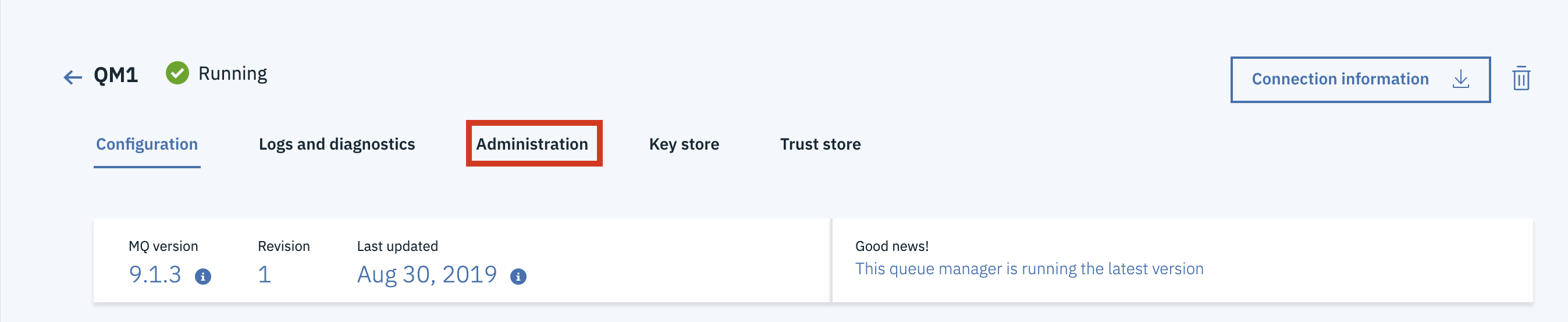

Accessing platformApiKey.json
