Authenticating your users with single sign-on

Key Terminology

Builders or admins can configure SSO when setting up a connection for the application.For OAuth 2.0 On-Behalf-Of (OBO) and OAuth2.0 Token Exchange authentication types, this process assumes that the third-party application is already integrated with and federated to an Identity Provider (IdP), and the SSO configuration involves a combination of application and Identity Provider configurations. For OAuth2 Direct Access Token, the SSO token is used for embedded chat, while the watsonx Orchestrate token is used for in‑portal chat when making tool calls.

Identity Providers and applications that are supported by watsonx Orchestrate SSO

Currently, watsonx Orchestrate SSO supports the following Identity Providers and applications.

Authentication types

watsonx Orchestrate offers three distinct SSO implementations. Select the SSO implementation that best fits the token exchange and security needs of your applications.

The following table explains the the authentication types and the key differences between them.

For more information about member credentials, see Credential types.

Token refresh flow

When using SSO authentication, tokens have a limited lifespan and must be validated and refreshed to maintain secure access to downstream applications. The token refresh behavior varies based on the authentication type and deployment context.

OAuth2 On-Behalf-Of Flow and OAuth2 Token Exchange

For OAuth2 On-Behalf-Of Flow and OAuth2 Token Exchange the token management works as follows:

• Token validation in embedded chat : In embedded chat deployments, the proxy layer validates the SSO token on every incoming request. If the SSO token is expired or invalid, the request is rejected.

• Connection creation: When a connection is created, the response includes an access token and its expiry time. No refresh tokens are provided.

• Token refresh during tool execution: During tool execution, the system checks the token expiry. If the token has expired, the system automatically regenerates it using the stored credentials.

• In-portal chat: In in-portal chat, the incoming JWT is treated as the SSO token. The token generation and refresh process follows the same steps as in embedded chat.

OAuth2 Direct Access Token

For OAuth2 Direct Access token the token management works as follows:

• Token validation in embedded chat: In embedded chat, the proxy layer validates the SSO token on every incoming request. If the SSO token is expired or invalid, the request is rejected.

• Token validity assumption: The system assumes that connections always receive a valid and unexpired SSO token. The system does not validate or refresh the token, assuming that the token received is valid, and propagates it as received. This behavior applies to both embedded chat and in‑portal chat scenarios.

Benefits of using SSO

• Seamless access: Users can interact with applications through Orchestrate without repeated logins

• Improved security: Credentials are managed centrally by the IdP

• Faster workflows: Agents and tools that are linked to the applications can be triggered instantly

• Simplified authorization: No need to implement role-based access in the third-party applications

Choosing the right authentication flow

Use the following guidance to decide which authentication flow best fits your use case:

Use OAuth 2.0 On-Behalf-Of (OBO) flow when:

• A backend service needs to call another service on behalf of an authenticated user.

• You require multi-hop delegation and preservation of user context.

• You are integrating with Identity Providers such as Microsoft Entra ID, where OBO is commonly used.

• Fine-grained access control across services is required.

Use OAuth 2.0 Token Exchange when:

• You need a simple, single-step token exchange.

• You are integrating with Identity Providers such as IBM Verify, where a one-step token exchange is sufficient.

• You do not require multi-tier user delegation.

• You want lower latency and reduced complexity.

Use OAuth2 Direct Access Token (Passthrough feature) when:

• An external Identity Provider (IdP) already issues a trusted token that the downstream endpoint already trusts and can validate.

• You do not need any additional server infrastructure, and customers can manage the authentication flow directly without maintaining a separate mock server.

• Customers are responsible for configuring and managing trust between their IdP and backend services.

Comparison of OAuth2 Authorization Code and SSO OAuth 2.0 On-Behalf-Of (OBO) authentication types

The following table provides a comparison of the OAuth2 Authorization Code and SSO On‑Behalf‑Of (OBO) authentication types, highlighting how each method manages credentials, access, and prerequisites.

OAuth2 On Behalf Of Flow (OBO) connection flow

Following is the step-by-step flow for OAuth2 On Behalf Of Flow (OBO) (two-step token exchange) connection:

1. User is authenticated with the Identity Provider (IdP). After authentication, the IdP issues a valid SSO user token. This token represents the user’s verified identity.

2. User initiates a request in the chat interface (in‑portal chat or embedded chat) inside watsonx Orchestrate.

3. The chat context is identified by watsonx Orchestrate. It detects the chat type (in‑portal or embedded) and the SSO user token that is included in the incoming request.

4. First token exchange: SSO user token -> SAML assertion (by using IdP). watsonx Orchestrate sends the SSO user token to the IdP. The IdP validates the SSO token. The IdP then issues a SAML assertion token. This exchange is the first step in the two‑step exchange.

5. Second token exchange: SAML assertion -> application access token (by using OAuth server). watsonx Orchestrate sends the SAML assertion token to the downstream application’s OAuth authorization server. The OAuth server validates the SAML assertion. This exchange is the second step in the two-step exchange.

6. The application access token is returned to watsonx Orchestrate by the OAuth server. This token grants watsonx Orchestrate permission to act on behalf of the user within the downstream application.

7. Using the newly obtained application-specific access token, watsonx Orchestrate calls the downstream application API server such as Salesforce, Workday, or ServiceNow. All application actions now occur securely on behalf of the authenticated user.

OAuth2 Token Exchange connection flow

Following is the step-by-step flow for OAuth2 Token Exchange (one-step token exchange) connection:

1. User is authenticated with the Identity Provider (IdP). After authentication, the IdP issues a valid SSO user token. This token represents the user’s verified identity.

2. User initiates a request in the chat interface (in‑portal chat or embedded chat) inside watsonx Orchestrate.

3. The chat context is identified by watsonx Orchestrate. It detects the chat type (in‑portal or embedded) and the SSO user token that is included in the incoming request.

4. Direct token exchange with OAuth server. Instead of requiring a second login or redirect flow, watsonx Orchestrate performs a one‑step token exchange. It sends the SSO user token to the application’s OAuth authorization server. The OAuth server acts as the bridge between the Identity Provider and application access.

5. OAuth server validates the SSO token. After validation, the server issues an application‑specific access token (for example, Salesforce access token).

6. The application access token is returned to watsonx Orchestrate. The OAuth server returns the new application access token. This token grants watsonx Orchestrate permission to act on behalf of the user within the downstream application.

7. Using the newly obtained access token, watsonx Orchestrate calls the downstream application API server such as Salesforce, Workday, or ServiceNow. All application actions now occur securely on behalf of the authenticated user.

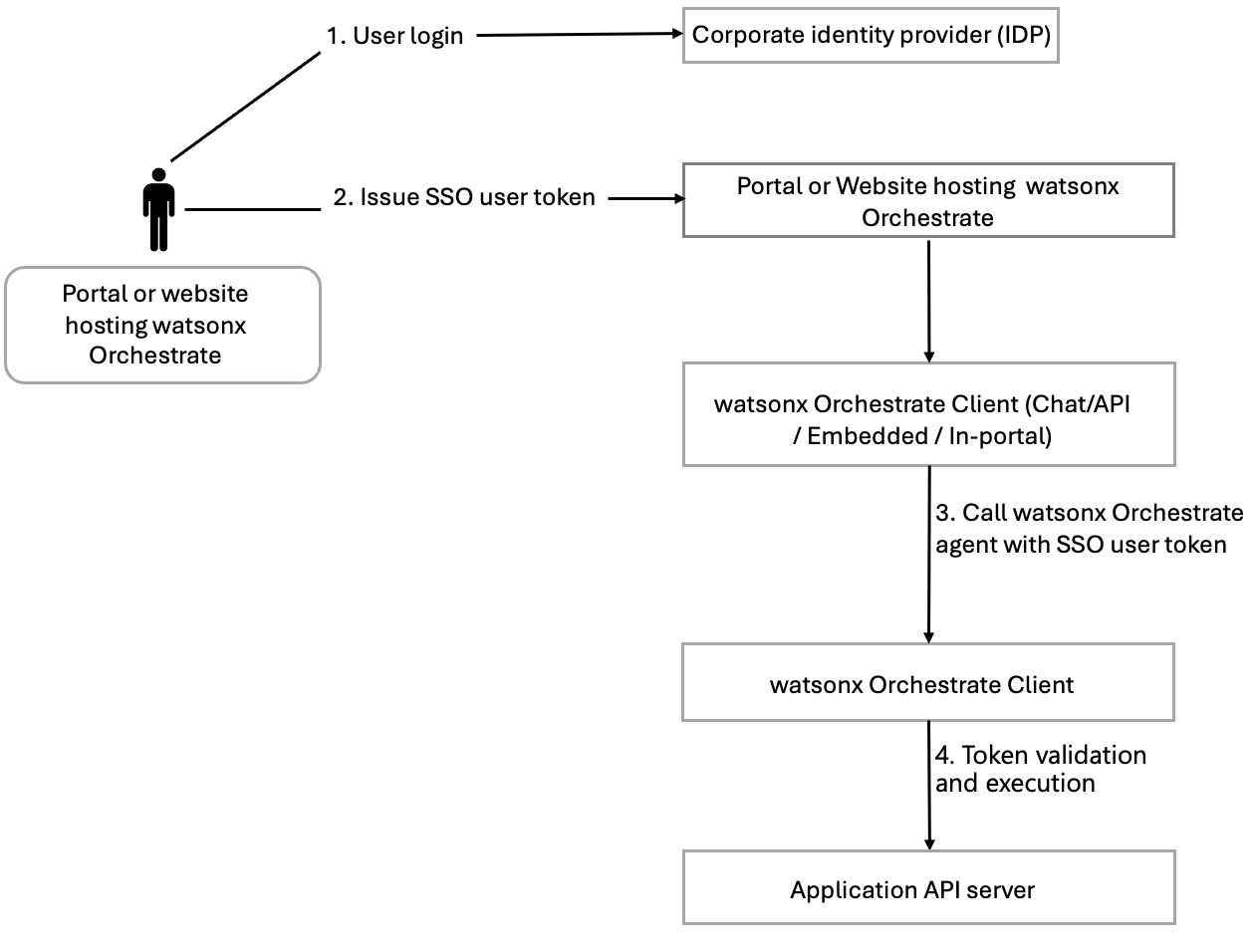

OAuth2 Direct Access Token connection flow

Following is the step-by-step flow for OAuth2 Direct Access Token (passthrough) connection:

1. User is authenticated with the Identity Provider (IdP). After authentication, the IdP issues a valid SSO user token. This token represents the user's verified identity.

2. User initiates a request in the chat interface (in‑portal chat or embedded chat) inside watsonx Orchestrate.

3. The SSO token provided to embedded chat is used directly as the access token for API endpoints. For in-portal chat, the watsonx Orchestrate token is used for tool calls.

4. Using the SSO token directly, watsonx Orchestrate calls the downstream application API server. All application actions now occur securely on behalf of the authenticated user.

Familiarizing the SSO Connection UI

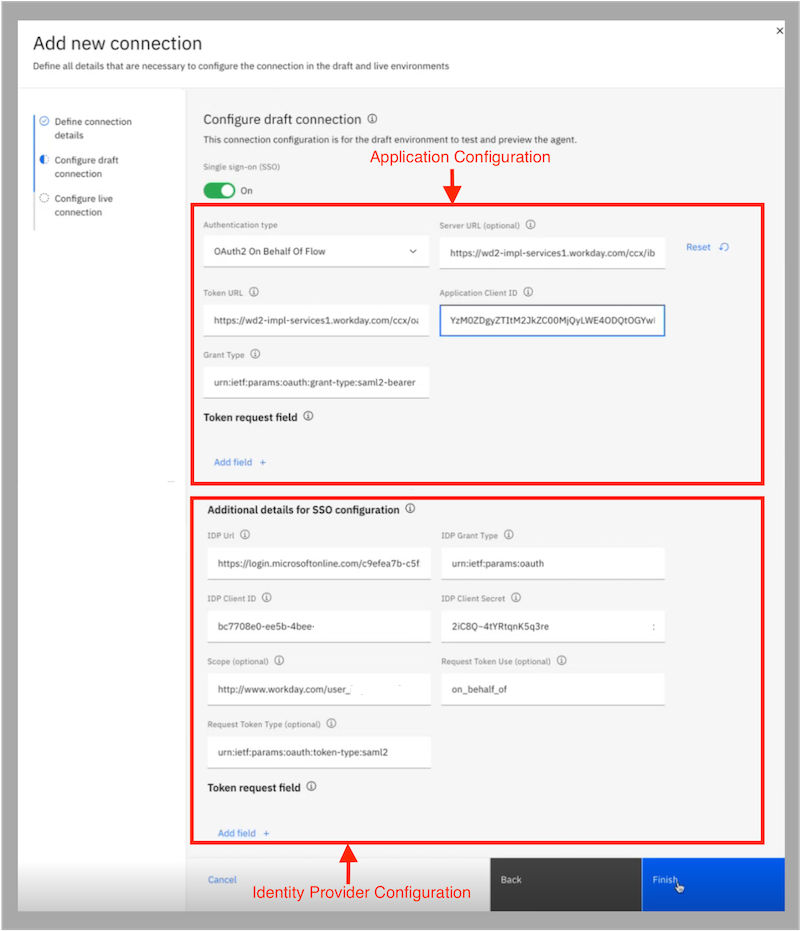

The OAuth 2.0 On-Behalf-Of (OBO) SSO type requires configuring two components in the UI:

1. Application configuration - Settings for the downstream application

2. Identity Provider configuration - Settings for the IdP

Both components must be properly configured for SSO to function correctly.

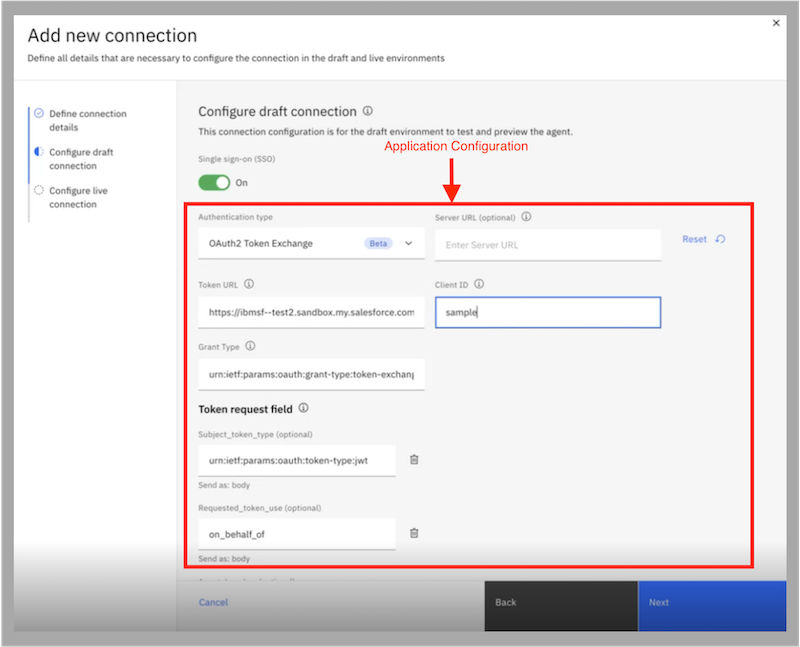

The OAuth2.0 Token Exchange SSO type requires only the application configuration in the UI:

Before you begin

Before you configure SSO in watsonx Orchestrate, ensure the following prerequisites:

• Your third-party application is integrated with your Identity Provider (IdP). For example, if you're configuring SSO for the Workday application, first integrate Workday with your IdP (for example, Microsoft Entra ID). For guidance, see Microsoft Entra single sign-on (SSO) integration with Workday.

• It is recommended to test your connection outside of watsonx Orchestrate. Verify that the Identity Provider (IdP) and your application integration works as expected. You can use your API client or another testing tool to run the required cURL commands to get the tokens.

  • For OAuth 2.0 On-Behalf-Of (OBO), verify that you can obtain these connection tokens: a user SSO token, a SAML token for the user with the application assertion, and an application access token.

  • For OAuth2.0 Token Exchange, verify that you can obtain these connection tokens: a user SSO token and an application access token.

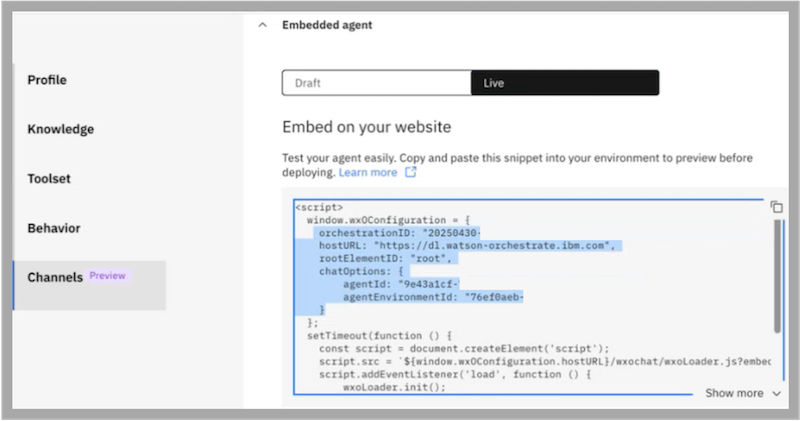

• Enable secure chat as a prerequisite for integrating with the embedded chat. For more information, see Securing the embedded chat. Get the Agent ID and Tennant ID in the Live environment to bind the agent and tools to the connection. You can get the Agent ID and Tennant ID from the Channels -> Live tab as shown in the following image.

Enabling and configuring SSO

To enable and configure single sign-on:

1. From the main menu, go to Manage > Security > Connections in AWS and IBM Cloud.

   In other environments, use the Manage > Connections navigation path.

2. On the Connections page, click Add connection.

3. Enter a Connection ID and Display name and click next.

4. Toggle Single Sign-On (SSO) to On.

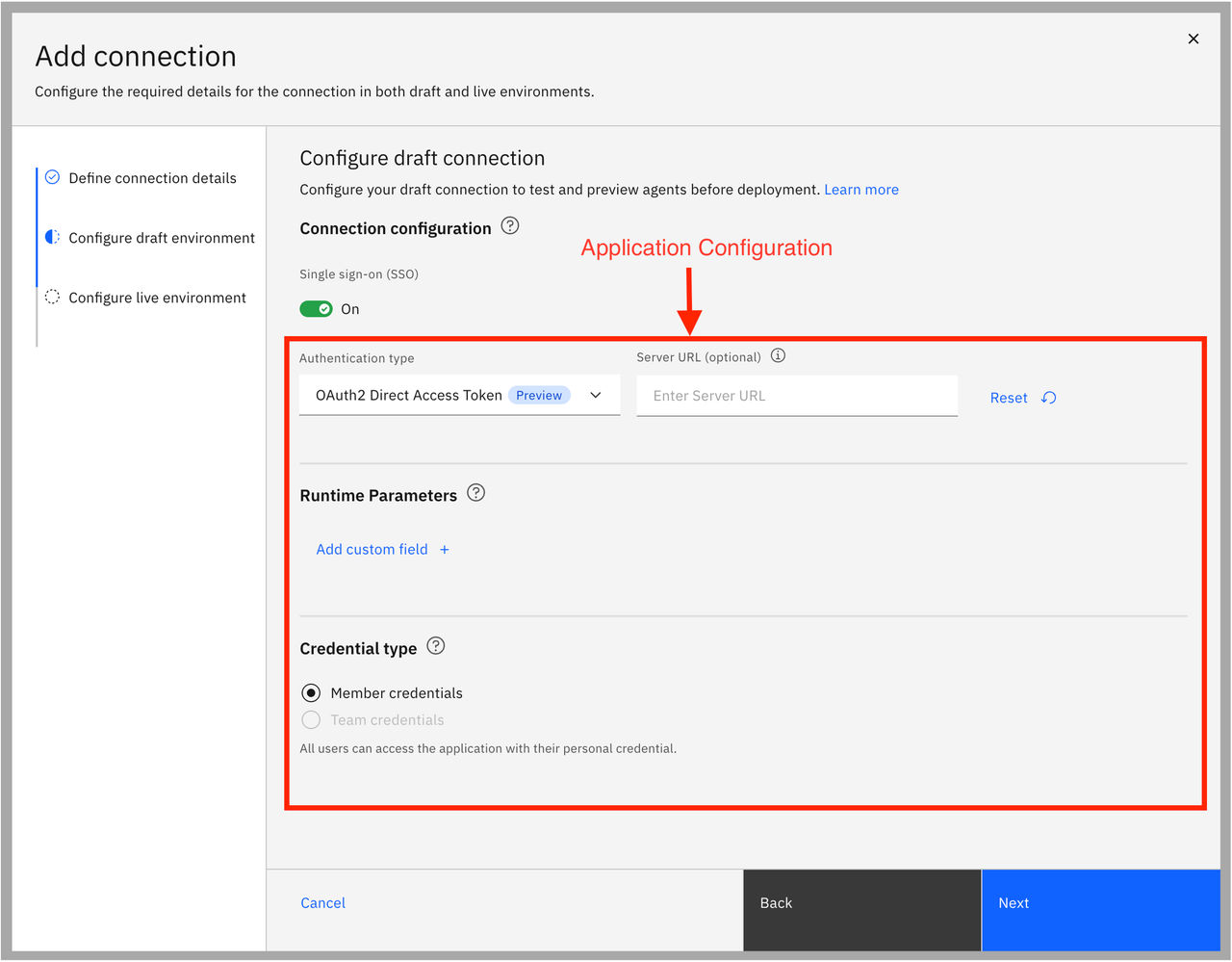

5. Select an authentication type, choose from:

   • OAuth2.0 On Behalf Of Flow

   • OAuth2.0 Token Exchange

   • OAuth2 Direct Access Token

6. The Credential type is automatically set for SSO and supports only member credentials. Click Next to continue.

7. Configure the live connection. You can either Paste draft configuration or define a new setup.

8. Click Finish to save the connection.

Editing an existing connection

To update an existing connection with SSO settings:

1. Navigate to Manage > Security > Connections in AWS and IBM Cloud.

   In other environments, use the Manage > Connections navigation path.

2. Locate the connection that you want to update.

3. Click the Overflow menu icon , and select Edit connection. To edit the connection details such as display name and description, select Edit details.

4. Save your changes to apply the new settings.
