Use 3D STEP models to plan M/T 9176 Model MER/MLR hardware placement in data center.
9176-MER customers may use the provided 3-dimensional STEP models to plan the placement of their hardware in the data center. Note that the hardware represented in these models is not shown mounted in a rack.
9176-MER Components
**Click on image to access 3D model** (This will take you to a ZIP file in a Box folder)
| CPC Drawer |  |

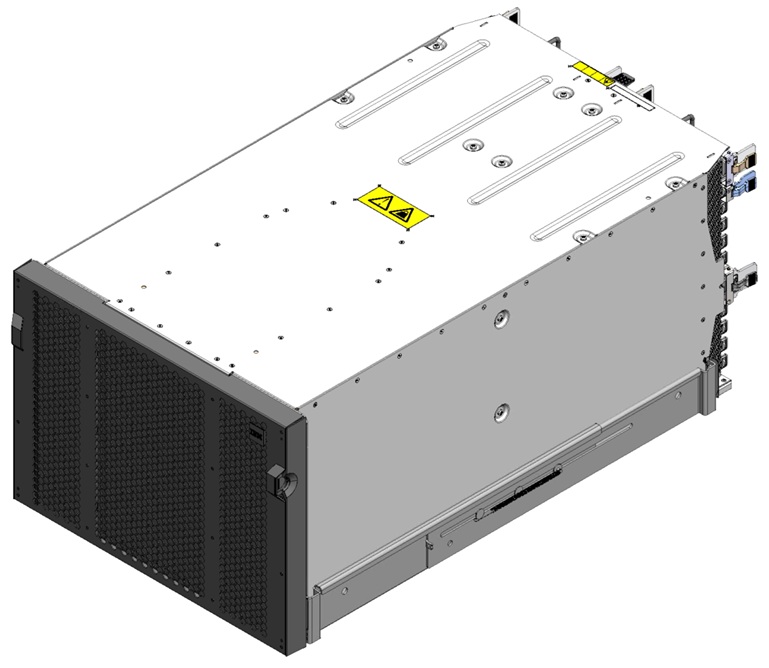

| PCIe+ I/O Expansion Drawer |  |

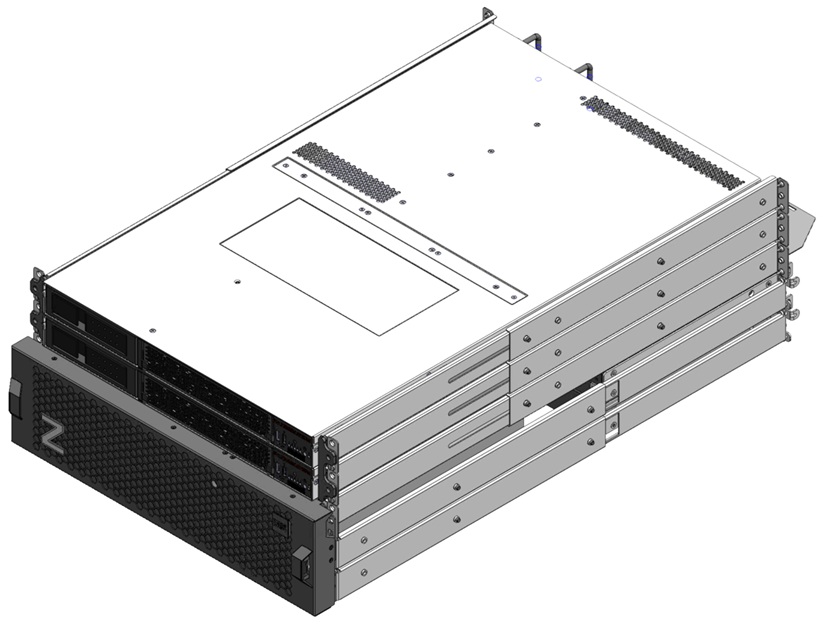

| Support Elements / Switches / KMM Storage Cubby |  |
