Steps

1. Installing and configuring OpenLDAP

https://www.ibm.com/docs/en/rpa/23.0?topic=ldap-installing-configuring-openldap

Install OpenLDAP

sudo apt-get install ldap-utils slapd

Reconfigure slapd

sudo dpkg-reconfigure slapd

This command allows you to configure the slapd server after installation. You'll be prompted to set various options:

• Omit OpenLDAP server configuration? : No
• DNS Domain name : Specify your domain name (e.g., example.com). This will form your base DN (Distinguished Name) . The DNS domain name is used to construct the base DN of the LDAP directory. For example, foo.example.org will create the directory with dc=foo, dc=example,dc=org as base DN
• Organization name : This is usually your company or organization name.
• Admin password : Set or reset the password for the LDAP admin user.

Start the slapd Service

sudo systemctl start slapd.service

Check slapd Service Status

sudo systemctl status slapd.service

Allow LDAP through the Firewall

sudo ufw allow ldap

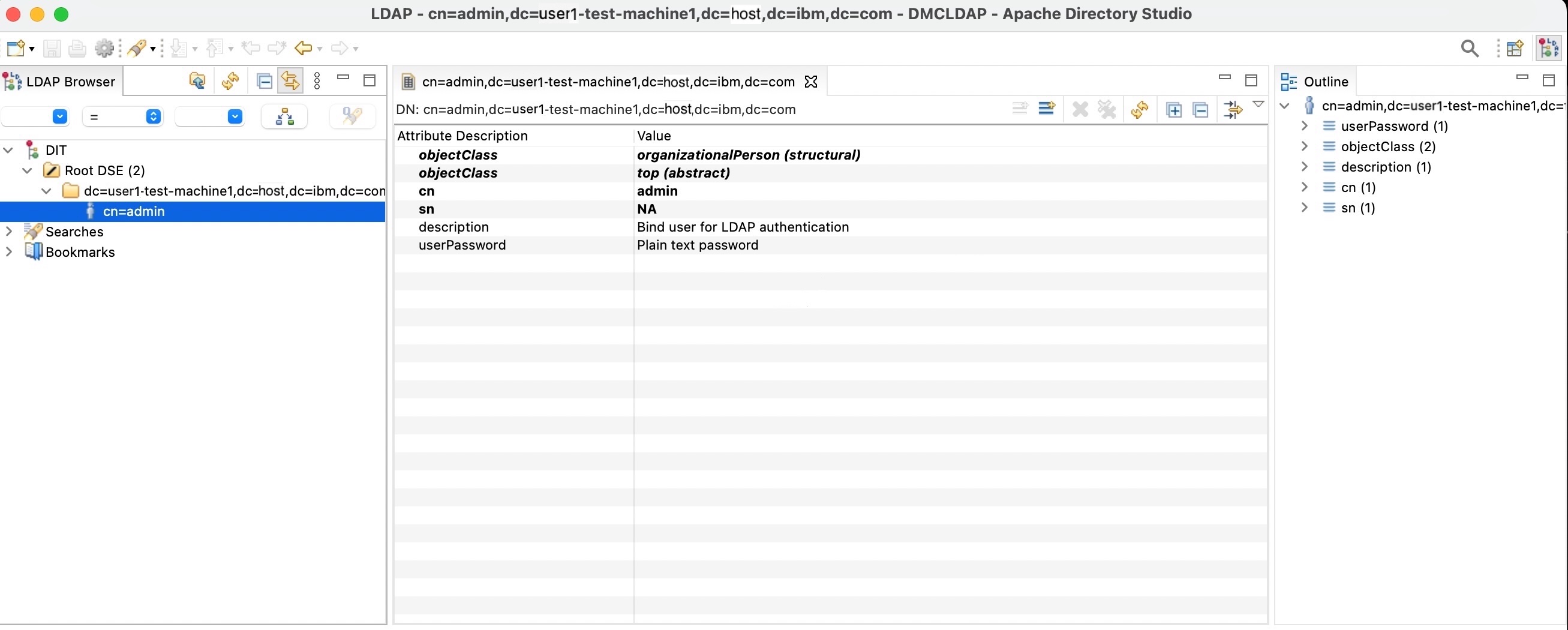

2. Create a Bind Account

https://www.ibm.com/docs/en/db2-data-mgr-console/3.1.x?topic=mapping-configure-ldap-user-information

Create an LDIF file for the bind account: bind_user.ldif

dn: cn=admin,dc=user1-test-machine1,dc=host,dc=ibm,dc=com
objectClass: organizationalPerson
objectClass: top
cn: admin
sn: NA
userPassword: bind_password
description: Bind user for LDAP authentication

Add the bind account to the LDAP directory:

ldapadd -x -D "cn=admin,dc=user1-test-machine1,dc=host,dc=ibm,dc=com" -W -f bind_user.ldif

DMC configuration parameters :

Bind DN : cn=admin,dc=user1-test-machine1,dc=host,dc=ibm,dc=com

Bind password : bind_password

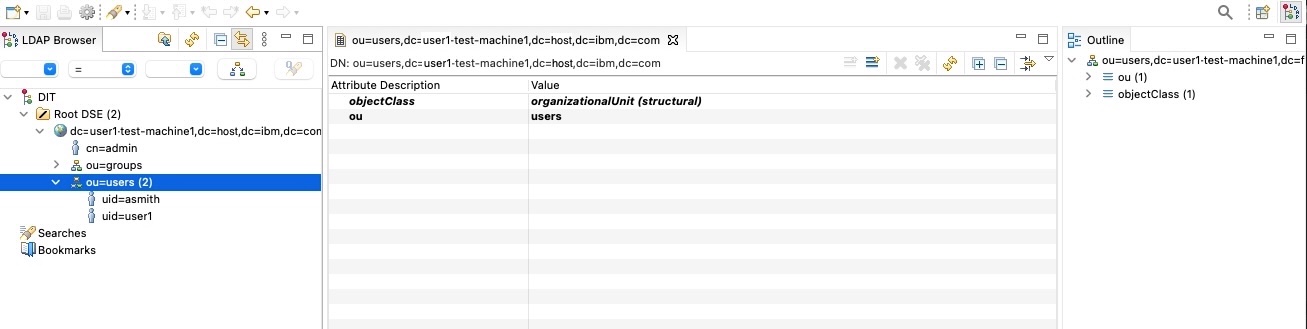

3. Create the Users Organizational Unit

https://www.ibm.com/docs/en/db2-data-mgr-console/3.1.x?topic=mapping-configure-ldap-user-information

Create an LDIF file for the users organizational unit : ou_users.ldif

dn: ou=users,dc=user1-test-machine1,dc=host,dc=ibm,dc=com
objectClass: organizationalUnit
ou: users

Add the users organizational unit to the LDAP directory :

ldapadd -x -D "cn=admin,dc=user1-test-machine1,dc=host,dc=ibm,dc=com" -W -f ou_users.ldif

DMC configuration parameters :

User info : User base DN : ou=users,dc=user1-test-machine1,dc=host,dc=ibm,dc=com

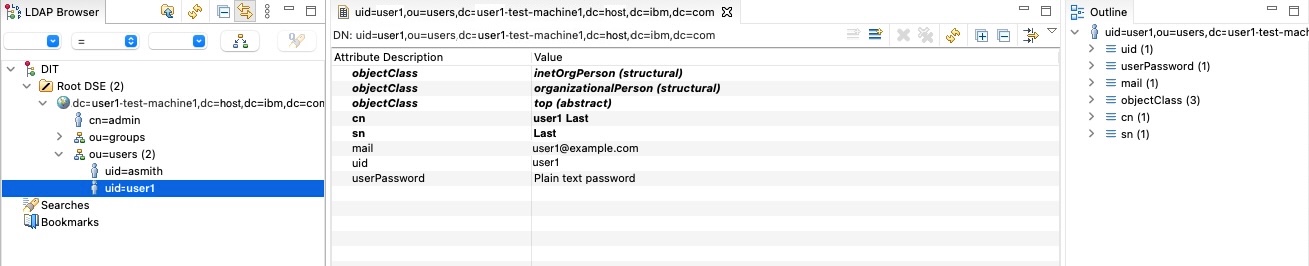

4. Add User Entries

Create an LDIF file for the users : users.ldif

dn: uid=user1,ou=users,dc=user1-test-machine1,dc=host,dc=ibm,dc=com
objectClass: inetOrgPerson
objectClass: organizationalPerson
objectClass: top
uid: user1
cn: user1 Last
sn: Last
userPassword: password
mail: user1@example.com

dn: uid=asmith,ou=users,dc=user1-test-machine1,dc=host,dc=ibm,dc=com
objectClass: inetOrgPerson
objectClass: organizationalPerson
objectClass: top
uid: asmith
cn: Abcd Smith
sn: Smith
userPassword: password
mail: jsmith@example.com

Add the user entries to the LDAP directory :

ldapadd -x -D "cn=admin,dc=user1-test-machine1,dc=host,dc=ibm,dc=com" -W -f users.ldif

DMC configuration parameters :

User info : User login attribute type : uid

5. Create the Groups Organizational Unit

https://www.ibm.com/docs/en/db2-data-mgr-console/3.1.x?topic=mapping-configure-ldap-group-information

Create an LDIF file for the groups organizational unit : ou_groups.ldif

dn: ou=groups,dc=user1-test-machine1,dc=host,dc=ibm,dc=com
objectClass: organizationalUnit
ou: groups

Add the groups organizational unit to the LDAP directory :

ldapadd -x -D "cn=admin,dc=user1-test-machine1,dc=host,dc=ibm,dc=com" -W -f ou_groups.ldif

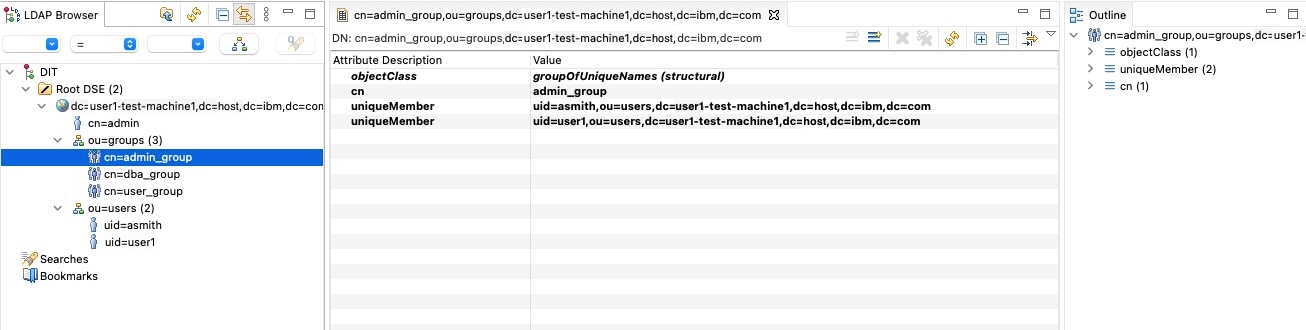

6. Create Groups in LDAP

Create an LDIF file for the groups : groups.ldif

dn: cn=admin_group,ou=groups,dc=user1-test-machine1,dc=host,dc=ibm,dc=com
objectClass: groupOfUniqueNames
cn: admin_group
uniqueMember: uid=user1,ou=users,dc=user1-test-machine1,dc=host,dc=ibm,dc=com
uniqueMember: uid=asmith,ou=users,dc=user1-test-machine1,dc=host,dc=ibm,dc=com

dn: cn=dba_group,ou=groups,dc=user1-test-machine1,dc=host,dc=ibm,dc=com
objectClass: groupOfUniqueNames
cn: dba_group
uniqueMember: uid=user1,ou=users,dc=user1-test-machine1,dc=host,dc=ibm,dc=com

dn: cn=user_group,ou=groups,dc=user1-test-machine1,dc=host,dc=ibm,dc=com
objectClass: groupOfUniqueNames
cn: user_group
uniqueMember: uid=asmith,ou=users,dc=user1-test-machine1,dc=host,dc=ibm,dc=com

Add the group entries to the LDAP directory :

ldapadd -x -D "cn=admin,dc=user1-test-machine1,dc=host,dc=ibm,dc=com" -W -f groups.ldif

DMC configuration parameters :

Console Administrator : Group DN : cn=admin_group,ou=groups,dc=user1-test-machine1,dc=host,dc=ibm,dc=com

Console Administrator : Member attribute type : uniqueMember

Console Administrator : Member attribute type : dn

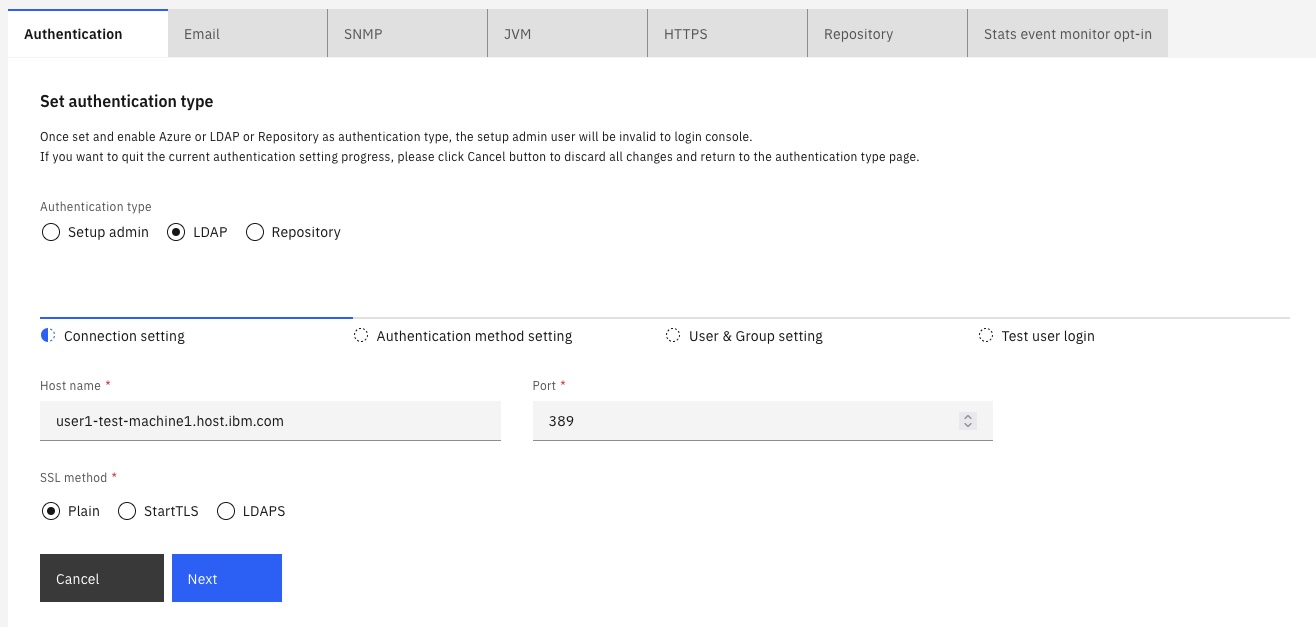

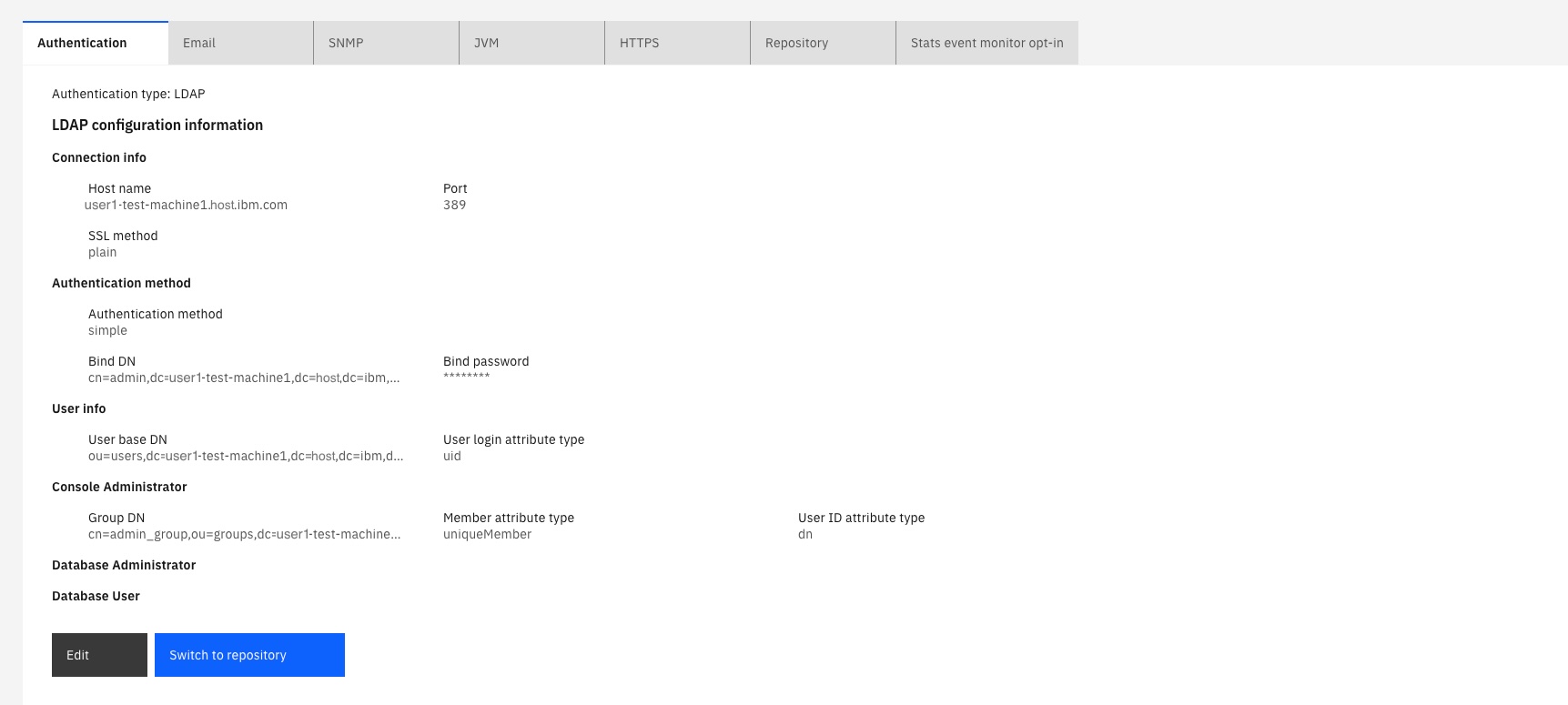

7. Configure LDAP on DMC like this.

Host name : user1-test-machine1.host.ibm.com

Port : 389

Bind DN : cn=admin,dc=user1-test-machine1,dc=host,dc=ibm,dc=com

Bind password : bind_password

User info : User base DN : ou=users,dc=user1-test-machine1,dc=host,dc=ibm,dc=com

User info : User login attribute type : uid

Console Administrator : Group DN : cn=admin_group,ou=groups,dc=user1-test-machine1,dc=host,dc=ibm,dc=com

Console Administrator : Member attribute type : uniqueMember

Console Administrator : Member attribute type : dn

8. One-step configuration for all LDAP LDIF files.

#!/bin/bash

# Define the LDAP admin credentials
LDAP_ADMIN="cn=admin,dc=user1-test-machine1,dc=host,dc=ibm,dc=com"
# Prompt for password
read -sp "Enter LDAP admin password: " LDAP_PASS
echo

# Array of LDIF files to be added in the specified order
LDIF_FILES=(
    "bind_user.ldif"
    "ou_users.ldif"
    "users.ldif"
    "ou_groups.ldif"
    "groups.ldif"
)

# Loop through each LDIF file and add it to the LDAP directory
for LDIF_FILE in "${LDIF_FILES[@]}"; do
    echo "Adding $LDIF_FILE..."
    ldapadd -x -D "$LDAP_ADMIN" -f "$LDIF_FILE" -w "$LDAP_PASS"

    if [ $? -eq 0 ]; then
        echo "$LDIF_FILE added successfully."
    else
        echo "Failed to add $LDIF_FILE."
    fi
done

echo "All LDIF files processed."

Switch LDAP back to the default admin setup in DMC

https://www.ibm.com/docs/en/db2-data-mgr-console/3.1.x?topic=configuration-resetting-authentication
