The statistics data section in a CICS® statistics record consists of multiple statistics
records.

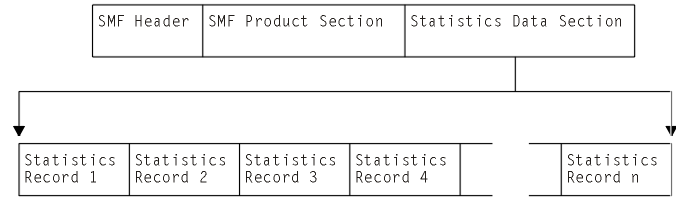

The format of the CICS statistics data section is shown in Figure 1.
Figure 1. Format of the statistics data section
If the data records are incomplete, the flag field SMFSTICD is set to
YES. In this case, the statistics data section is not present.
For complete data records, the statistics data section
is made up of one or more statistics data records. There are different
formats of data records. Each has a common format for the first 5
bytes. These 5 bytes are described in the extract from copybook DFHSTIDS
in Figure 2. Figure 2. Extract
from copybook DFHSTIDS
DFHSTIDS DSECT Statistics record header
*
DS 0F Fullword alignment
STILEN DS H Length of the record
STID DS AL2 Statistics identifier
STIVERS DS CL1 Statistics record version
STILEN
The length of the data record.
STID
A name or value that identifies which type of statistics record you have (see Table 1).
You can use the STID symbolic name or value to determine which copy
book to use when processing the statistics data records. For details about the relationship between
the STID name or value and the copy book, see Table 1. For further guidance
information about the fields within the statistics data records, see CICS statistics in DSECTS and DFHSTUP report.
STIVERS
The version of the record. STIVERS takes the value 1 for
this release of CICS.
Statistics data record copybooks related to STID name and value
Table 1. Statistics data record copybooks related to STID name and value
STID symbolic name
STID value
Copybook
Type of record
STIXMG
10
DFHXMGDS
Transaction manager (Globals) id
STIXMR
11
DFHXMRDS
Transaction manager (Trans) id
STIXMC
12
DFHXMCDS
Transaction manager (Tclass) id
STIFEPIP
16
DFHA22DS
FEPI pool id
STIFEPIC
17
DFHA23DS
FEPI connection id
STIFEPIT
18
DFHA24DS
FEPI target id
STISMD
19
DFHSMDDS
Storage mgr domain subpool id
STISMT
20
DFHSMTDS
Storage manager task subpool id
STIVT
21
DFHA03DS
z/OS Communications Server stats id
STIPAUTO
23
DFHPGGDS
Program Autoinstall id
STIAUTO
24
DFHA04DS
Terminal Autoinstall stats id
STILDR
25
DFHLDRDS
Public Loader (Resid) id
STIDBUSS
28
DFHDBUDS
DBCTL USS id
STISMDSA
29
DFHSMSDS
Storage manager DSA id
STILDG
30
DFHLDGDS
Loader (Globals) id
STILDB
31
DFHLDBDS
LIBRARY resources - public
STILDY
32
DFHLDYDS
LIBRARY resources - private
STITCR
34
DFHA06DS
Terminal control (resid) id
STILDP
36
DFHLDPDS
Private Loader (Resid) id
STILSRR
39
DFHA08DS
LSRPOOL pool stats (resid) id
STILSRFR
40
DFHA09DS
LSRPOOL File statistics (by file)
STITDQR
42
DFHTQRDS
TDQUEUE (Resid) id
STITDQG
45
DFHTQGDS
TDQUEUE (globals) id
STITSQ
48
DFHTSGDS
TSQUEUE statistics id
STICONSR
52
DFHA14DS
ISC/IRC system entry (resid) id
STICONSS
54
DFHA21DS
ISC connection - system security
STIUSG
61
DFHUSGDS
User domain stats id
STIDS
62
DFHDSGDS
Dispatcher stats id
STITM
63
DFHA16DS
Table manager statistics id
STIDST
64
DFHDSTDS
Dispatcher TCB (global)id
STIDSR
65
DFHDSRDS
Dispatcher TCB (resid)id
STIST
66
DFHSTGDS
Statistics statistics id
STIFCR
67
DFHA17DS
File Control (resid) id
STIMQG
74
DFHMQGDS
MQ connection stats (global) id
STICONMR
76
DFHA20DS
ISC/IRC mode entry (resid) id
STIM
81
DFHMNGDS
Monitoring stats (global) id
STIMNR
84
DFHMNTDS
Monitoring stats (Resid) id
STITDR
85
DFHTDRDS
Transaction dump (resid) id
STITDG
87
DFHTDGDS
Transaction dump (global) id
STISDR
88
DFHSDRDS
System dump (resid) id
STISDG
90
DFHSDGDS
System dump (global) id
STILGG
92
DFHLGGDS
Logstream stats (global) id
STILGR
93
DFHLGRDS
Logger stats (resid) id
STILGS
94
DFHLGSDS
Logstream stats (resid) id
STINQG
97
DFHNQGDS
Enqueue mgr stats (global) id
STIRMG
99
DFHRMGDS
Recovery mgr stats (global) id
STIRLR
100
DFHRLRDS
BUNDLEs (resource) id
STIWBG
101
DFHWBGDS
URIMAPs (global) id
STID2G
102
DFHD2GDS
DB2 connection stats (global) id
STID2R
103
DFHD2RDS
DB2 entry stats (resource) id
STIWBR
104
DFHWBRDS
URIMAPs (resource) id
STIPIR
105
DFHPIRDS
PIPELINE (resource) id
STIPIW
106
DFHPIWDS
WEBSERVICE (resource) id
STISOG
107
DFHSOGDS
TCP/IP (global) id
STISOR
108
DFHSORDS
TCPIP services (resource) id
STIISR
109
DFHISRDS
IPCONN (resource) id
STIW2R
110
DFHW2RDS
ATOMSERVICE (resource) id
STIDHD
112
DFHDHDDS
DOCTEMPLATE (resource) id
STIMLR
113
DFHMLRDS
XMLTRANSFORM (resource) id
STISJS
116
DFHSJSDS
JVMSERVER stats (resource) id
STIPGR
119
DFHPGRDS
JVMPROGRAM stats (resource) id
STIPGD
120
DFHPGDDS
PROGRAMDEF stats (resource) id
STIECG
140
DFHECGDS
EVENTBINDINGs (global) id
STIECR
141
DFHECRDS
EVENTBINDINGs (resource) id
STIEPG
142
DFHEPGDS
EVENTPROCESS (global) id
STIECC
143
DFHECCDS
CAPTURESPECs (resource) id
STIEPR
144
DFHEPRDS
EPADAPTERs (resource) id
STIPGP
146
DFHPGPDS
JVM programs - private
STIPGE
147
DFHPGEDS
Program definitions - private
STIMQR
148
DFHMQRDS
MQMONITORs (Resource) id
STIASG
149
DFHASGDS
ASYNCSERVICE (Global) id
TS data sharing statistics related to STID
The TS data sharing statistics use no symbolic names, but relate to the STID values as
follows:
Table 2. TS data sharing statistics related to STID
STID symbolic name
STID value
Copybook
Type of record
-
121
DFHXQS1D
TS server list structure stats id
-
122
DFHXQS2D
TS buffer stats id
-
123
DFHXQS3D
TS storage stats id
Coupling facility data table server statistics related to STID
The coupling facility data table server statistics use no symbolic names, but relate to the STID
values as follows:
Table 3. Coupling facility data table server statistics related to STID
STID symbolic name
STID value
Copybook
Type of record
-
126
DFHCFS6D
CFDT server list stats
-
127
DFHCFS7D
CFDT buffer stats id
-
128
DFHCFS8D
CFDT request stats id
-
129
DFHCFS9D
CFDT storage stats id
Named sequence server statistics related to STID
The named sequence number server statistics use no symbolic names, but relate to the STID values
as follows:
Table 4. Named sequence server statistics related to STID
