IBM Tivoli Storage Manager for Virtual Environments: Data Protection for VMware overview

IBM® Tivoli® Storage Manager for Virtual Environments: Data Protection for VMware provides a comprehensive solution for protecting VMs.

Data Protection for VMware eliminates the impact of running backups on a VM by offloading backup workloads from a VMware ESX or ESXi-based host to a vStorage Backup server. Data Protection for VMware works with the Tivoli Storage Manager backup-archive client (installed on the vStorage Backup server) to complete full and incremental backups of VMs. The client node installed on the vStorage Backup server is called the data mover node. This node "moves" the data to the Tivoli Storage Manager server for storage, and for VM image-level restore at a later time. Instant restore is available at the disk volume level and full VM level. In addition, protection of vApps and organization vDCs in a vCloud Director environment is also available.

The Tivoli Storage Manager backup-archive client is a separately licensed component that contains its own user interfaces and documentation. Familiarity with this product and its documentation is necessary in order to adequately integrate a comprehensive plan for protecting your VMs with Data Protection for VMware. Tivoli Storage Manager for Virtual Environments for Microsoft Windows 64-bit includes the Tivoli Storage Manager backup-archive client data mover features on the product DVD or download package.

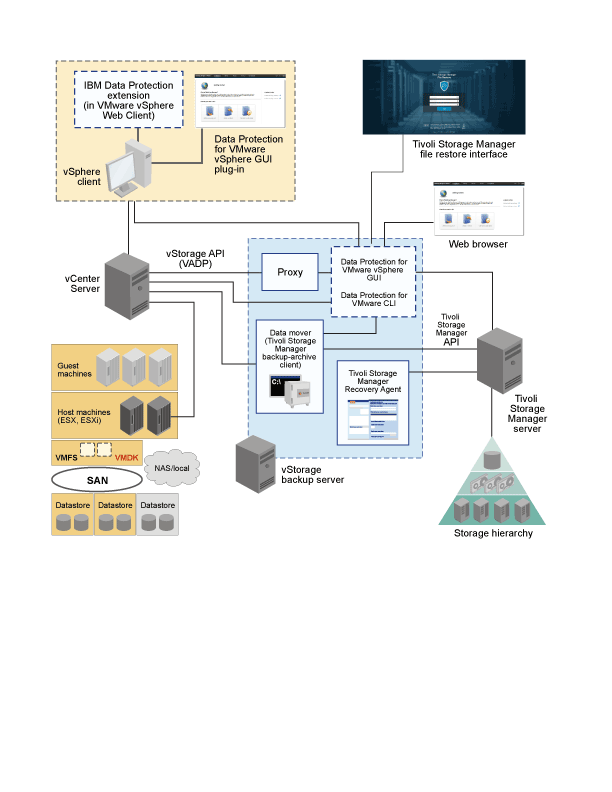

Figure 1. Tivoli Storage Manager for Virtual Environments system components in a VMware vSphere user environment
Tivoli Storage Manager for Virtual Environments system components in a VMware vSphere user environment

Data Protection for VMware provides several components to assist with protecting your VMs.

Data Protection for VMware vSphere GUI

This component is a graphical user interface (GUI) that accesses VM data on the VMware vCenter Server. The content of the GUI is available in three views:
  • A web browser view. This view is accessed in a supported web browser by using the URL for the GUI web server host. For example:
    https://guihost.mycompany.com:9081/TsmVMwareUI/
  • A plug-in view that integrates with the VMware vSphere Client. This plug-in is accessed as a vCenter Server extension in the Solutions and Applications panel of your vCenter Server System. The panels and functionality of this view are the same as offered in the browser view.
    Tip: The plug-in view is not supported in a VMware vSphere 6 environment.
  • The IBM Data Protection extension view in the VMware vSphere Web Client. The panels in this view are uniquely designed to integrate within the web client, but data and commands for this view are obtained from the same GUI web server as the other views. The IBM Data Protection extension provides a subset of the functions that are available in the web browser and plug-in views and some additional functions. Configuration and advanced reporting functions are not offered in this view.
You can specify one or more views during installation.

The Data Protection for VMware vSphere GUI can be installed on any system that meets the operating system prerequisites. The Data Protection for VMware vSphere GUI resource requirements are minimal as it does not process I/O data transfers. Installing the Data Protection for VMware vSphere GUI on the vStorage Backup Server is the most common configuration.

For the web-browser and plug-in views, you can register multiple Data Protection for VMware vSphere GUIs to a single vCenter Server. This scenario reduces the number of datacenters (and their VM guest backups) that are managed by a single VMware Data Protection for VMware vSphere GUI. Each plug-in can then manage a subset of the total number of datacenters that are defined on the vCenter Server. For each plug-in that is registered to the vCenter Server, one Data Protection for VMware package must be installed on a separate host. To update the managed datacenters, go to Configuration > Edit TSM Configuration. In the GUI Domain page, reduce the list of datacenters that are managed by the plug-in. Managing a subset of all available datacenters reduces the query and processing time that is required by the plug-in to complete operations.

When you register multiple Data Protection for VMware vSphere GUIs to a single vCenter Server, the following guidelines apply:
  • Each datacenter can be managed by only one installed Data Protection for VMware vSphere GUI.
  • A unique VMCLI node name is required for each installed Data Protection for VMware vSphere GUI.
  • Using unique data mover node names for each installed Data Protection for VMware vSphere GUI simplifies managing the nodes.
The Data Protection for VMware vSphere GUI must have network connectivity to the following systems:
  • vStorage Backup Server
  • Tivoli Storage Manager server
  • vCenter Server
In addition, ports for the Derby Database (default 1527) and GUI web server (default 9081) must be available.

Tivoli Storage Manager file restore GUI

The web-based file restore GUI enables you to restore files from a VMware virtual machine backup without administrator assistance. The GUI is installed automatically when the Data Protection for VMware vSphere GUI is installed. For more information, see Getting started with file restore.

Tivoli Storage Manager recovery agent

This service enables the mounting of any snapshot volume from the Tivoli Storage Manager server. You can view the snapshot locally, with read-only access, on the client system, or use an iSCSI protocol to access the snapshot from a remote computer. In addition, the recovery agent provides the instant restore function. A volume used in instant restore processing remains available while the restore process proceeds in the background. The recovery agent is accessed with the recovery agent GUI or command-line interface.
The recovery agent command-line interface is installed on a Windows system to perform the following tasks from a remote machine:
  • Gather information about available restorable data, including lists of:
    • Backed-up VMs
    • Snapshots available for a backed-up machine
    • Partitions available in a specific snapshot
  • Mount a snapshot as a virtual device.
  • Get a list of virtual devices.
  • Remove a virtual device.
Important: Information about how to complete tasks with the Tivoli Storage Manager recovery agent GUI is provided in the online help that is installed with the GUI. Click Help in any of the GUI windows to open the online help for task assistance.

For detailed information regarding commands, parameters, and return codes, see Recovery Agent command-line interface.

Data Protection for VMware command-line interface

The Data Protection for VMware CLI is a full-function command-line interface that is installed with the Data Protection for vSphere GUI. You can use it to complete these tasks:
  • Initiate a backup of your VMs to a Tivoli Storage Manager server, or schedule a backup for a later time.
  • Initiate a full recovery of your VMs, VM files, or VM Disks (VMDKs) from a Tivoli Storage Manager server.
  • View configuration information about the backup database and environment.
Although the Data Protection for vSphere GUI is the primary task interface, the Data Protection for VMware CLI provides a useful secondary interface. For example, it can be used to implement a scheduling mechanism different from the one implemented by the Data Protection for vSphere GUI. Also, it is useful when evaluating automation results with scripts.

For detailed information regarding available commands, see Data Protection for VMware command-line interface.

Figure 2. Tivoli Storage Manager for Virtual Environments system components in a VMware vCloud Director user environment
Tivoli Storage Manager for Virtual Environments system components in a VMware vCloud Director user environment

Data Protection for VMware vCloud GUI

When you run the Tivoli Storage Manager for Virtual Environments installation wizard, you must select one of the following environment protection options: vSphere Protection or vCloud Protection. If you select vCloud Protection, the Data Protection for VMware vCloud GUI is installed.

Use this GUI to protect vApps and organization vDCs in a vCloud Director environment.

This GUI is accessed through a URL bookmark to the GUI web server. For example:
https://guihost.mycompany.com:9081/TsmVMwareUI/
The Data Protection for VMware vCloud GUI is the primary interface from which to complete these tasks:
  • Run immediate or schedule incremental forever backups of specific vApps, or vApps contained in an organization vDC to Tivoli Storage Manager server storage.
  • Restore single or multiple vApps.
  • Generate reports to display progress information about your tasks and space usage information about your backups.
  • Display information about the progress of your tasks, the most recent events that completed, the backup status of your vApps, and space usage. This information can help you troubleshoot errors that occurred in backup processing.
