Custom parameters and return values

Both custom parameters and return values are referenced by elements in void pointer arrays. Since parameters and return values can be of various data types, pointers to them are typecast to void* and then stored in a single array. Each such array holds either the custom parameter or the custom return values, but never both. The following diagram illustrates the structure of an example custom parameter array:

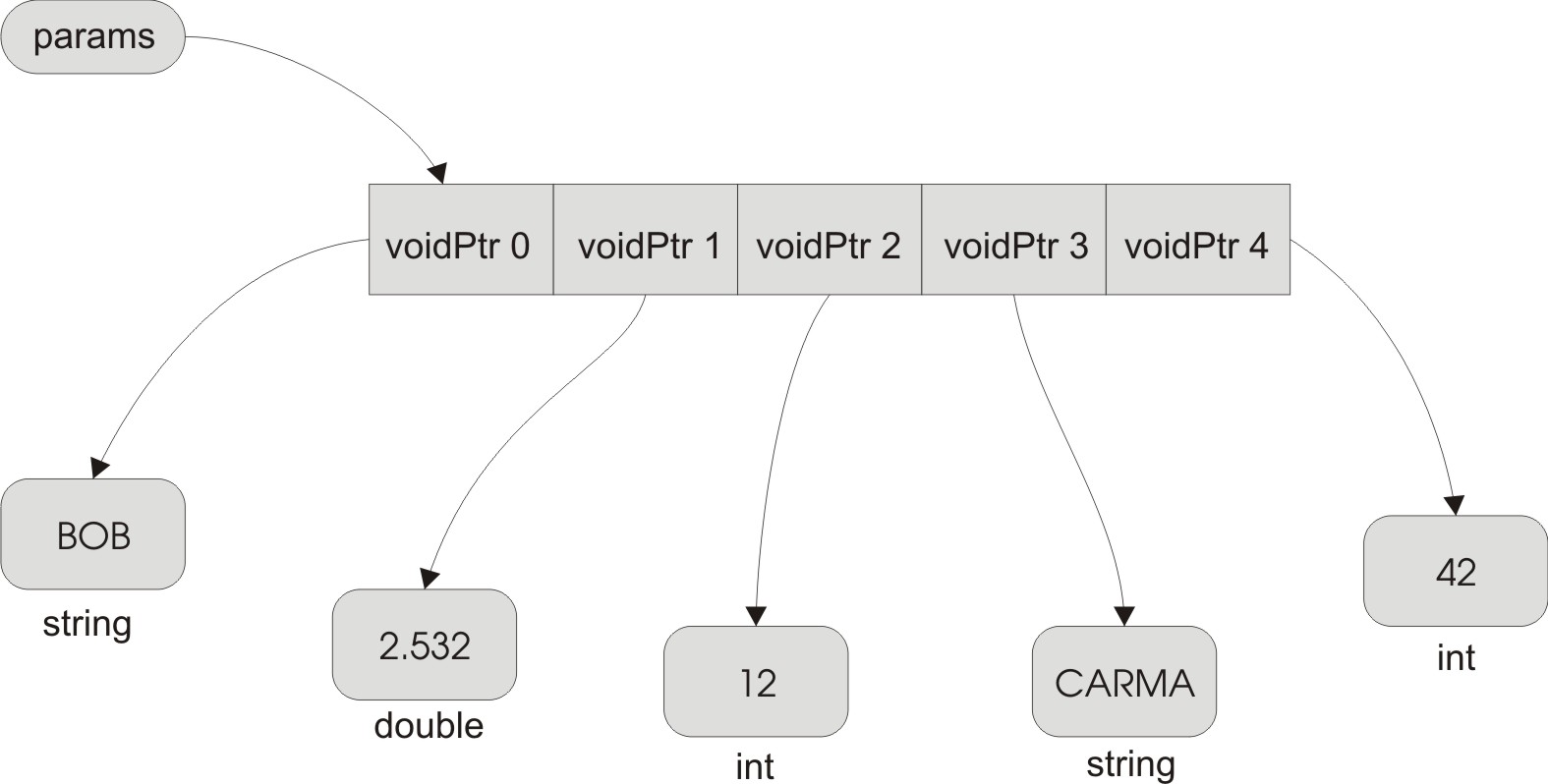

Figure 1. Custom parameter array example. Each element in the array is a pointer to a parameter. The value of each parameter is shown and labeled with its data type.

where params is a pointer to a void array and each voidPtr in the array is a void pointer that points to a parameter. Custom return value arrays should be similarly structured.

The number of elements that should be in a custom parameter or return value array is dependent upon the CAF information in the CARMA VSAM clusters (see Creating VSAM records from a RAM model). Since it is the responsibility of the RAM developer to include information on the custom parameters and return values in the VSAM clusters, the RAM developer should already know how many elements to include in the custom parameter and return value arrays. CARMA client developers can use the getCAFData or getCAFData2 CARMA function to retrieve information on the custom actions, parameters, and return values for a RAM (see getCAFData for more information). Using this information, CARMA client developers can determine how many custom parameters and return values are required for each RAM action.
