Basic iucvconn_on_login scenario

Edit online

This simple scenario illustrates the use of iucvconn_on_login and extends the basic scenario.

In addition to the connections through ts-shell, there is to be a connection through the iucvconn_on_login script.

The setup of the terminal server and target server are assumed to be as described in in the basic scenario. The fully qualified host name of the terminal server is assumed to be termserv1.example.net and the fully qualified host name of the target system lxguest1.example.net.

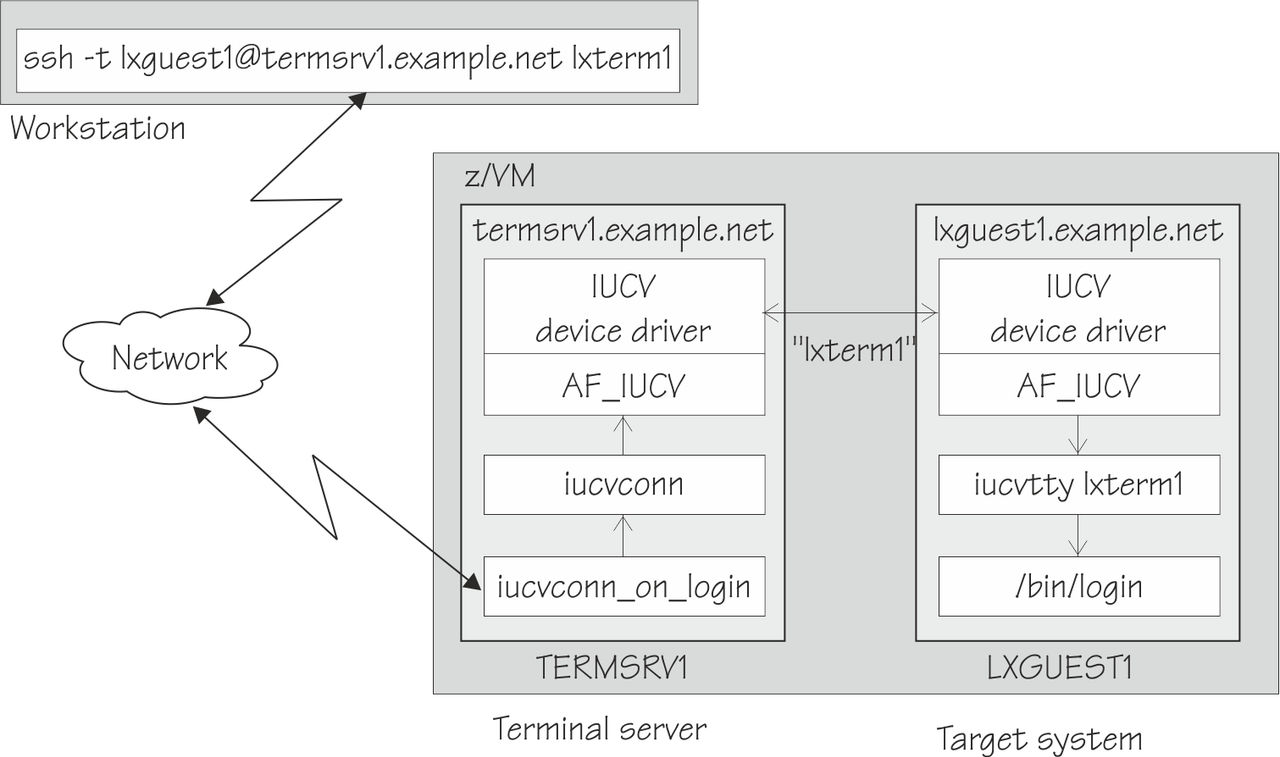

Figure 1. Accessing a terminal device with the iucvconn_on_login script

This graphic shows a terminal server and target system as described in the preceding text. In addition, there is a workstation from which the following command is issued: ssh -t lxguest1@termserv1.example.net lxterm1
