Extended scenario

Edit online

The extended scenario extends the basic scenario with a second user, a second terminal server, and numerous target systems.

This scenario extends the basic scenario as follows:
  • There is now a backup terminal server TERMSRV2. TERMSRV1 and TERMSRV2 must both be permitted to connect to all target systems.
  • In addition to LXGUEST1, there are more target systems: LXGUEST0, LXGUEST2 through LXGUEST9, and LINUX00 through LINUX99.
  • User alice is responsible for LXGUEST1, LXGUEST3, LXGUEST5, LXGUEST7, and LXGUEST9.
  • There is another ts-shell user, bob, who is responsible for LINUX00 through LINUX99, LXGUEST0, LXGUEST2, LXGUEST4, LXGUEST6, and LXGUEST8.
  • ts-shell is to be permitted to connect to the target systems only.
  • Session transcripts are to be created for LXGUEST0 through LXGUEST4.

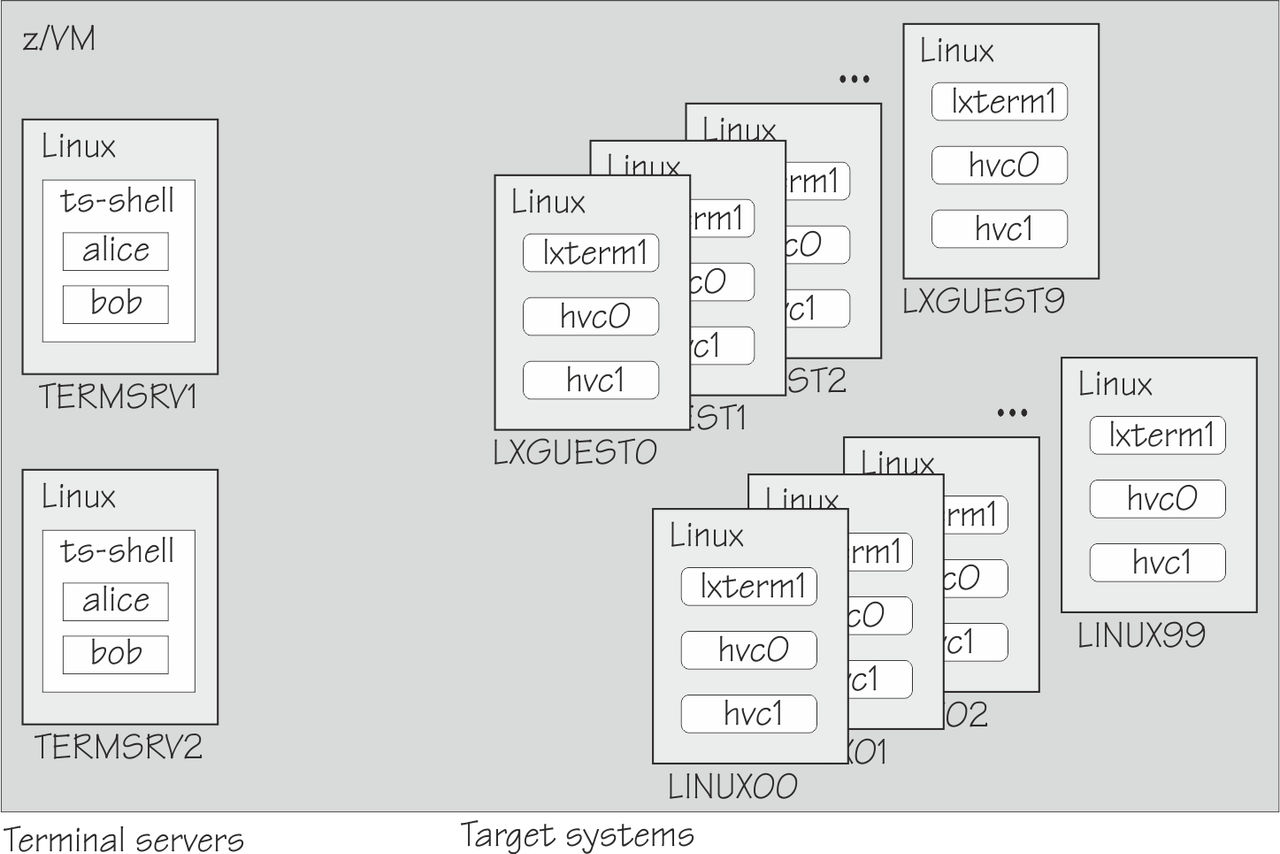

Figure 1. Extended scenario

This graphic is a visual summary of the extended scenario assumptions that are listed in the preceding text

This scenario assumes that the terminal servers and target systems are set up as described in the basic scenario.
