Typical RHOCP Topologies and Deployments

• Deploying RHOCP as the only cloud environment on IBM Z and IBM® LinuxONE
• Deploying RHOCP with another, non-containerized workload that you also run as a back-end in a Linux environment on IBM Z and IBM® LinuxONE hardware.

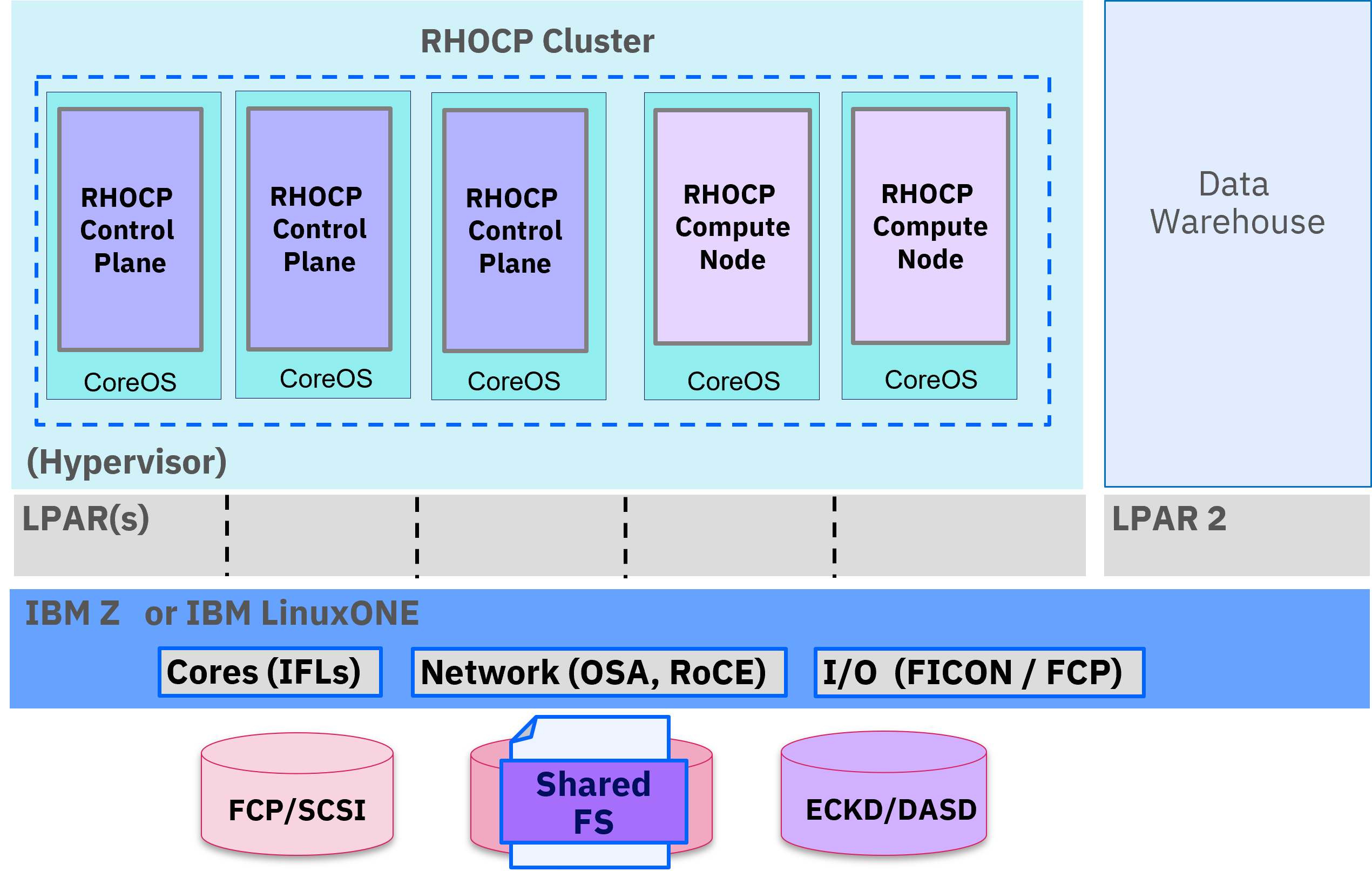

• Deploying RHOCP in colocation with a traditional operating and transactional environment or Data Warehouse and services such as z/OS or z/TPF on IBM Z hardware.
• Deploying RHOCP inside the z/OS Operating System in the z/OS Container Extension (zCX) Address Spaces that uses the product IBM zCX Foundation for Red Hat OpenShift. This deployment is described here.
• A newer topology for an RHOCP environment is a Multi-Architecture Compute topology, which enables a main RHOCP cluster to be extended with compute nodes on another architecture.
• Hosted Control Planes - input from WM

The last releases increased the variety of deployment options and the flexibility to build the environments that correspond to your needs and service requirements.

In general, all deployments of an RHOCP cluster can be realized in one or multiple Logical Partitions (LPARs).

The deployments now have the flexibility to be installed as follows:

• In native LPARs without any hypervisor
• Virtualized with IBM z/VM or RHEL KVM as hypervisors

Depending on the planned deployment, you can opt for different resource sharing topologies for core capacity, I/O, and network.

IBM Z and IBM® LinuxONE provide specialized components, which can be shared between the LPARs:

• The capacity core for running Linux and RHOCP is called Integrated Facility for Linux processor (IFL) and corresponds as component to a distributed core, but has characteristics, which enables for more workload per unit.
• The I/O attachments use FICON cards, which can be configured for traditional DASDs disks or for Fibre Channel SCSI, or FCP protocol. IBM Z and IBM® LinuxONE machines have dedicated processors to handle I/O and are independent from the application.
• The network can use machine internal network capabilities called HiperSockets networks (HS) and network cards called Opensystem adapters (OSA) or RoCE cards (Remote Direct Memory Access over Converged Ethernet cards). Multiple isolated internal networks can be defined and the ports on the network cards can be shared.

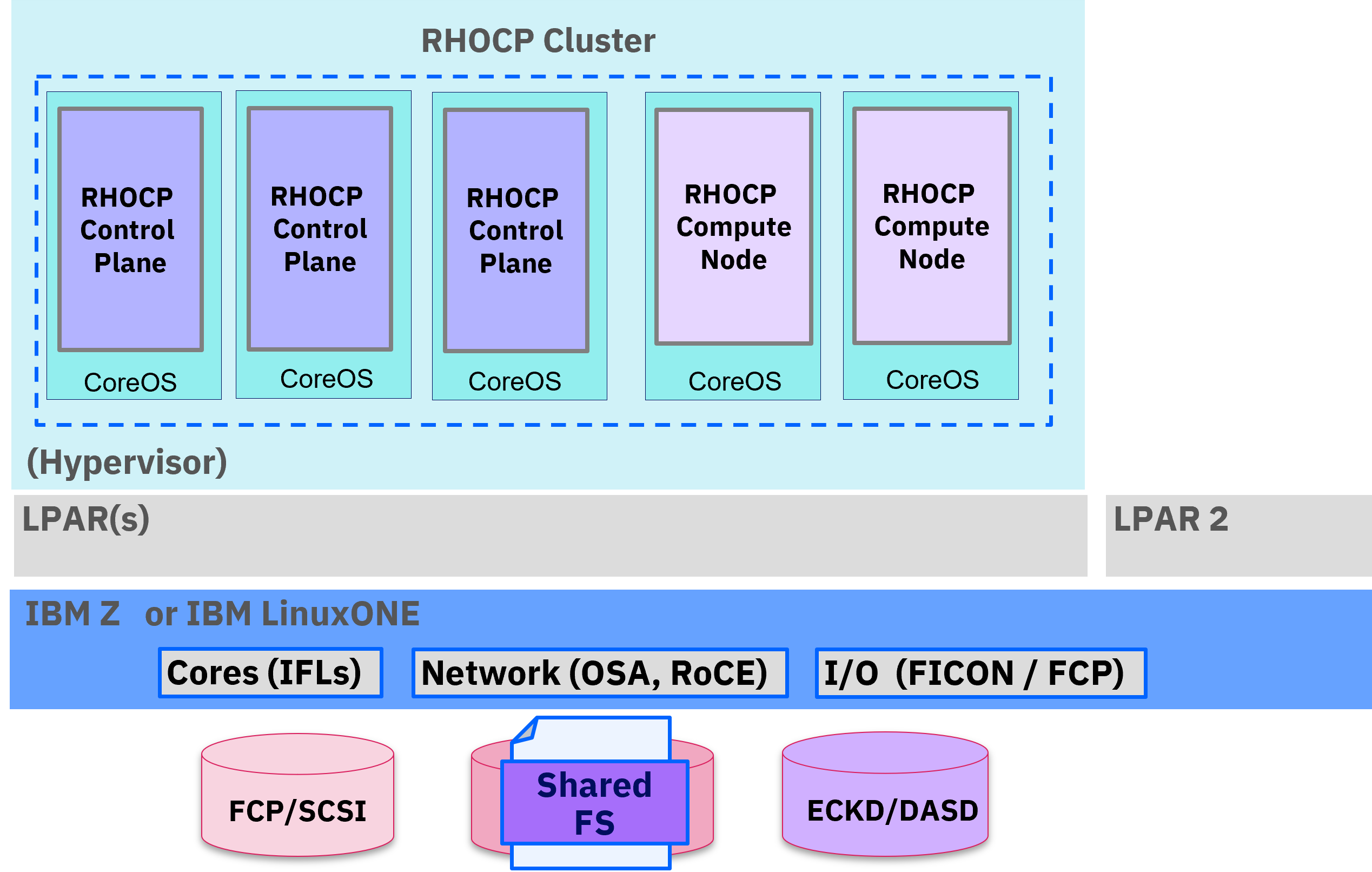

The concept of an RHOCP cluster is to provide service with high availability in mind. Therefore, the RHOCP cluster can be deployed with three control plane nodes and several compute nodes depending on the planned workloads and container applications needs. The minimum number of compute nodes is two. Extra compute nodes can or might be required, depending on the software solution requirements. For example, some software or databases require a minimum of three-nodes.

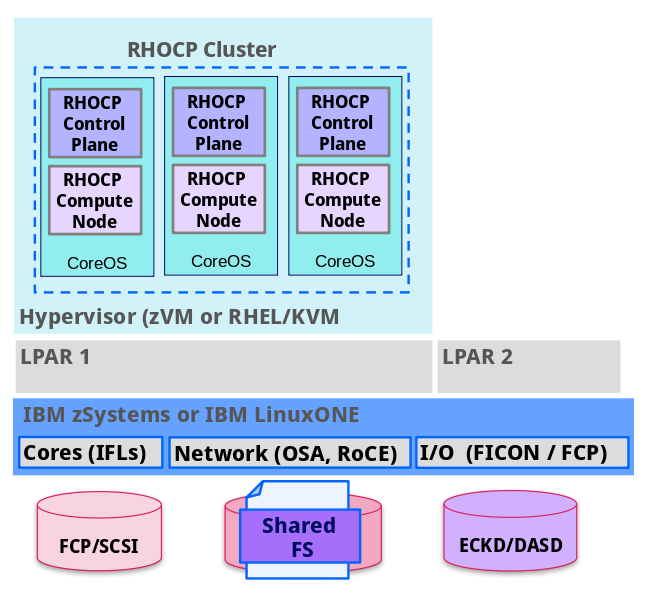

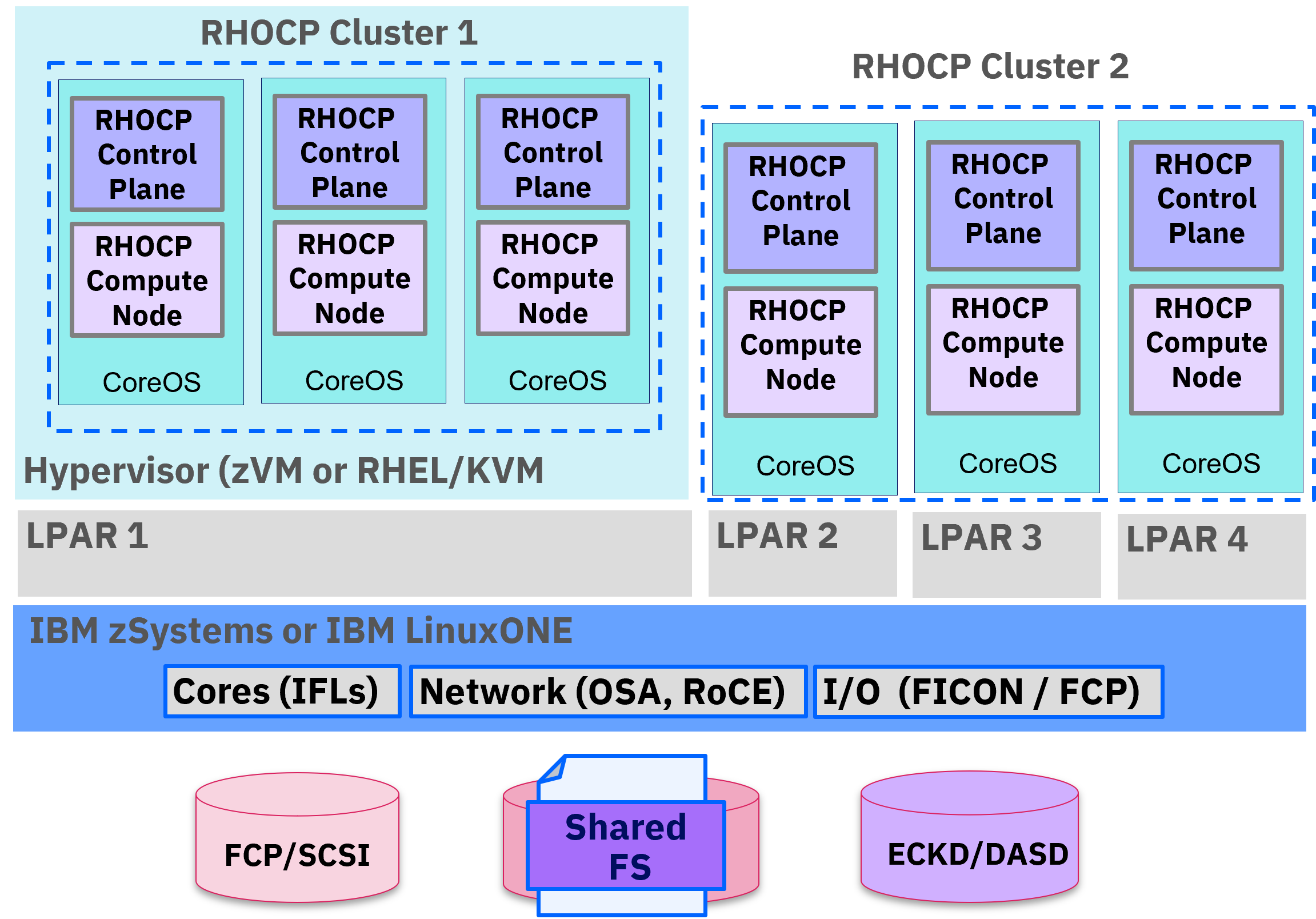

An alternative deployment model to the full HA deployment of RHOCP, was made available by introducing converged control planes and compute nodes in a total of three nodes per cluster, as shown in image. This setup can be a very helpful for proof of technologies, development, or test environments. This cluster can be extended with extra compute nodes, keeping the initial three converged nodes unchanged. This is a flexible way to start an HA model and extending it as needed.

The single-node OpenShift (SNO) environment is an exception to the concept of building a highly available RHOCP environment. It is built on a single node. This deployment is lacking the high availability of the cluster deployment, but can be useful for development, test environments, or uncritical workloads, which do not require high availability characteristics. With this model you start with a single converged node containing control and compute without extra need for more nodes. Further you can add to this single node extra compute nodes for scalability. Control nodes cannot be scaled and stay with 1, but you can add compute nodes to SNO. With this setup, resource consumption is reduced but cluster updates require a downtime and cluster availability is restricted to this single control node.

With Red Hat OpenShift 4.14, an extra deployment model to install RHOCP on a single node is supported. With this model, you start with a single converged node that contains control and compute without the extra need for more nodes. Further you can add to this single node extra compute nodes for scalability.

Control nodes cannot be scaled and stay with 1. With this setup, resource consumption is reduced but cluster updates require a downtime and cluster availability is restricted to this single node.

All RHOCP cluster deployments on IBM Z and IBM® LinuxONE can be deployed in native LPARs or in a virtualized environment, which means there is a requirement for a hypervisor in the RHOCP LPAR.

Therefore, on IBM Z and IBM® LinuxONE the deployment options to implement an RHOCP cluster are:

• Using IBM z/VM Version 7.2 or later.
• Using Red Hat Enterprise Linux 8.6 KVM (RHEL KVM) or later.
• Using LPARs only. This is a supported deployment option with Red Hat OpenShift 4.15 and later and allows to build a cluster without virtualization and hypervisors.

The most flexible and advanced deployment of an RHOCP cluster is the Multi-Architecture Compute deployment. This deployment starts with a traditional RHOCP cluster on IBM Z / IBM® LinuxONE or on x86 architecture. The base cluster can then be extended with compute nodes, which can reside on other architectures. Such a deployment enables solutions, which run on different architectures and can complement each other.

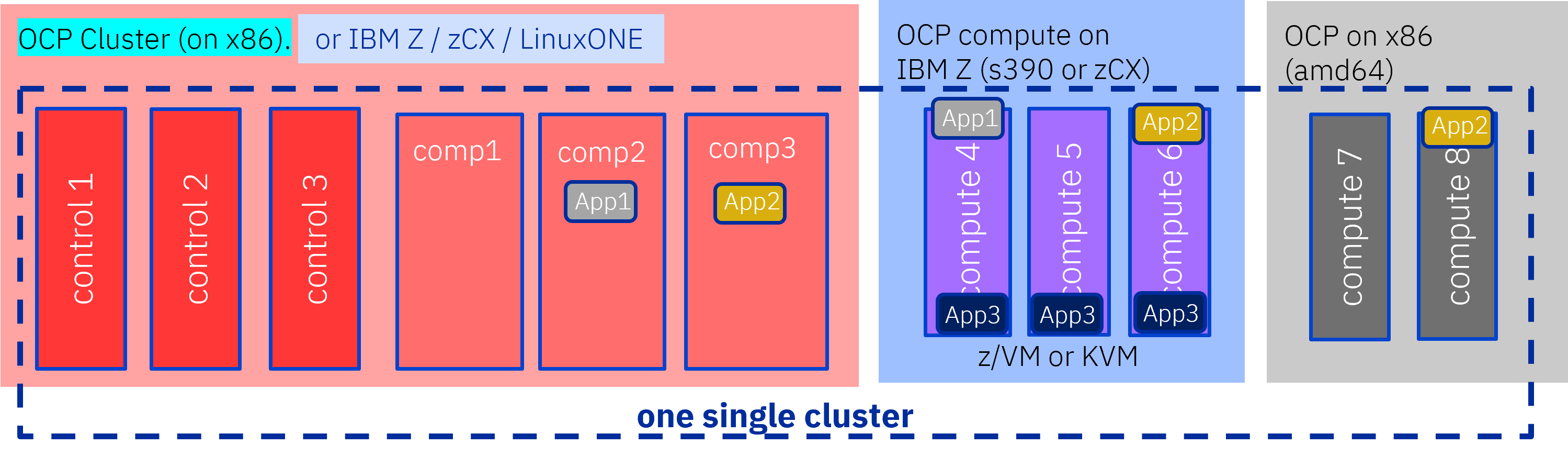

Figure 5 shows an architecture of a such deployment. Applications that are developed for Multi-Architectures can run based on their labels, on a single architecture or can run at the same time on Multi-Architecture compute environments.

For an RHOCP cluster, Red Hat Enterprise Linux CoreOS (RHCOS) is the host operating system for all nodes, control plane, and compute nodes. The RHCOS operating system is delivered as one package with the Red Hat OpenShift components. RHCOS is a self-managing, secure, and immutable container host, which is optimized for fast deployment and performance. RHCOS is versioned with Red Hat OpenShift. Because RHCOS is immutable, the platform can ensure security and does not need any active management by an administrator.

Running RHOCP under Red Hat Enterprise Linux on IBM Z and IBM® LinuxONE is not supported.

RHOCP in Version 4 nodes run on Red Hat Enterprise Linux CoreOS (RHCOS).

To install an RHOCP cluster, you can decide for different storage to be used. The installation of the hypervisor and the RHOCP guests is implemented on local storage disks.

The local storage can be FICON-attached DASD storage that uses Extended Count Key Data (ECKD) format or it can be Fibre Channel (FCP) attached storage that uses SCSI block device format.

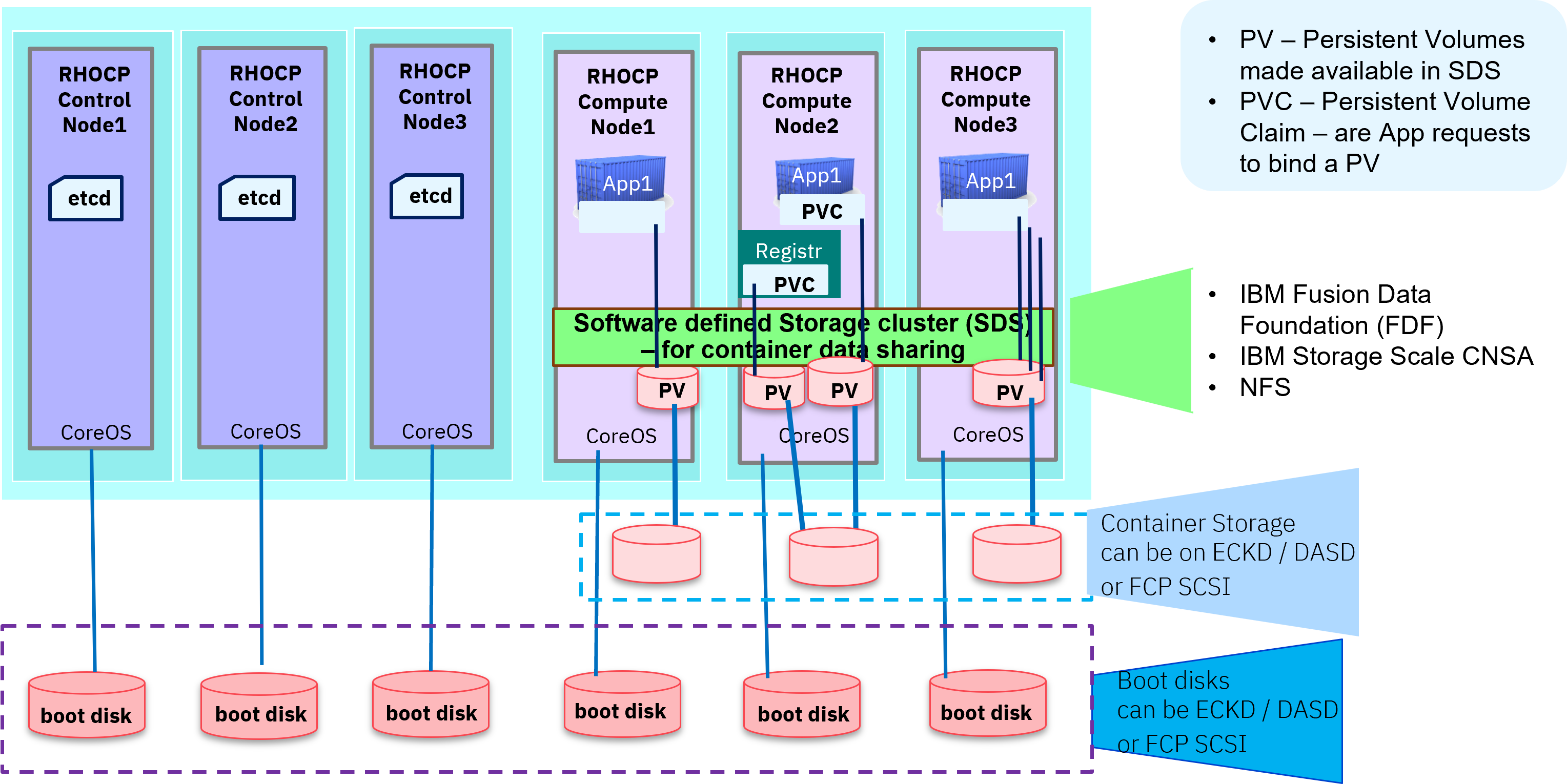

For the RHOCP internal container image registry, it is mandatory to have a shared storage with ReadWriteMany (rwm) capabilities.

For shared storage (rwm), you can use these Software Defined Storage (SDS) options:

• IBM Container Native Storage Access (CNSA) : A CSI-based cross cluster mount capability to attach an RHOCP cluster to an IBM Storage Scale clustered file system. The IBM Storage Scale cluster provides shared file system storage capabilities for container applications and non-containerized applications, and can be shared between different hardware architectures.
• IBM Fusion Data Foundation (also known as Red Hat OpenShift Data Foundation): This option is a shared storage approach based on Ceph and the corresponding CephFS file system. IBM Fusion Data Foundation provides block, file, and object storage via different interfaces. You can use local attached storage for IBM Fusion Data Foundation, or you can use Cross Cluster Mount CEPH clusters to attach RHOCP to.
• NFS-mounted storage: This type is only for tests and proof of technologies, due to performance and security reasons.
