The CICS product section
The CICS® product section identifies the subsystem to which the journaling data relates.
Its format is shown in Figure 1.

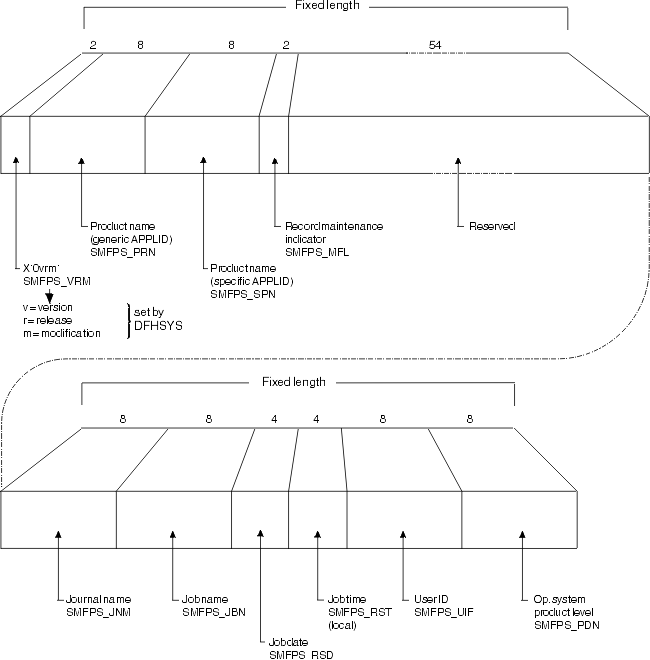

Figure 1. Format of the CICS product
section
The format of the CICS product section is:
- SMFPS_VRM
- 2-byte CICS version, release, and modification information, in the format X'0vrm'.
- SMFPS_PRN
- 8-byte product name (generic APPLID).
- SMFPS_SPN
- 8-byte product name (specific APPLID).
- SMFPS_MFL
- 2-byte record maintenance indicator.
- Reserved
- 54-byte reserved field.
- SMFPS_JNM
- 8-byte journal name.
- SMFPS_JBN
- 8-byte job name.
- SMFPS_RSD
- 4-byte job date.
- SMFPS_RST
- 4-byte job time (local).
- SMFPS_UIF
- 8-byte user ID.
- SMFPS_PDN
- 8-byte operating system product-level.
