Locations

Use this information to help you map a location code to a position on the unit.

Note: The known logical location codes for this unit are listed next to the corresponding physical location in the following information. If you are working with a logical location code for this unit and it is not listed in the following information, contact your next level of support.

The following diagrams show the field replaceable unit (FRU) layout in the system. Use these diagrams with the following tables.

Important: The current design for the 5794, 5797 and 5798 have the VPD same 5791 label. To help you differentiate the differences refer to these characteristics:

Differences between FC5791 and FC5794:
- 5791 (4 drive backplanes for 16 drives) has P3 (furthest left), P4, P5, and P6 (furthest right) drive bays contain drives and drive backplanes.
- 5794 (2 drive backplanes for 8 disks) has only P3 (furthest left) and P5 drive bays contain drives and drive backplanes.
Differences between 5797 (with repeater card) and 5798 (without repeater card) :
- Includes imbedded SCSI controllers: P1-T4, P1-T5, P2-T4, P2-T5 (T4 and T5)

Figure 1. 5791 and 5794 front view

Figure 2. 5791 and 5794 back view

Figure 3. 5797 and 5798 front view

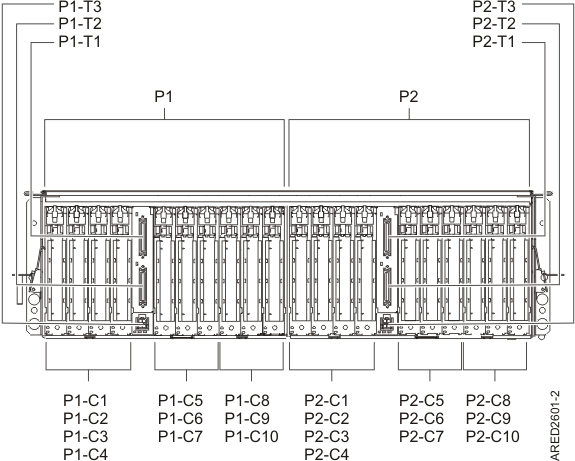

Figure 4. 5797 and 5798 back view

Figure 5. Top view

The following table provides location codes for parts that make up the server.

The 5791 RIO cable has black connectors and does not have the letters RSR or RLR on the label. The 5797 has the letters RLR on the label, and the 12X cable has green connectors. The 5798 has the letters RSR on the label, and the 12X cable has green connectors.

Table 1. 5791 and 5794 location codes
Failing item name	Physical location code
I/O planar book, plugs into I/O backplane	Un-P1
I/O planar book, plugs into I/O backplane	Un-P2
Disk drive backplane	Un-P3
Disk drive backplane	Un-P4
Disk drive backplane	Un-P5
Disk drive backplane	Un-P6
PCI adapter in slot 1	Un-P1-C01
PCI adapter in slot 2	Un-P1-C02
PCI adapter in slot 3	Un-P1-C03
PCI adapter in slot 4	Un-P1-C04
PCI adapter in slot 5	Un-P1-C05
PCI adapter in slot 6	Un-P1-C06
PCI adapter in slot 7	Un-P1-C07
PCI adapter in slot 8	Un-P1-C08
PCI adapter in slot 9	Un-P1-C09
PCI adapter in slot 10	Un-P1-C10
IB riser card	Un-P1-C11
IB riser card	Un-P1-C11-T1
IB riser card	Un-P1-C11-T2
PHB (PCI bridge set) 1	Un-P1-C01 Un-P1-C02 Un-P1-C03 Un-P1-C04
PHB (PCI bridge set) 2	Un-P1-C05 Un-P1-C06 Un-P1-C07
PHB (PCI bridge set) 3	Un-P1-C08 Un-P1-C09 Un-P1-C10
PCI adapter in slot 1	Un-P2-C01
PCI adapter in slot 2	Un-P2-C02
PCI adapter in slot 3	Un-P2-C03
PCI adapter in slot 4	Un-P2-C04
PCI adapter in slot 5	Un-P2-C05
PCI adapter in slot 6	Un-P2-C06
PCI adapter in slot 7	Un-P2-C07
PCI adapter in slot 8	Un-P2-C08
PCI adapter in slot 9	Un-P2-C09
PCI adapter in slot 10	Un-P2-C10
PHB (PCI bridge set) 1	Un-P2-C01 Un-P2-C02 Un-P2-C03 Un-P2-C04
PHB (PCI bridge set) 2	Un-P2-C05 Un-P2-C06 Un-P2-C07
PHB (PCI bridge set) 3	Un-P2-C08 Un-P2-C09 Un-P2-C10
Fan 1 (left)	Un-A1
Fan 2	Un-A2
Fan 3	Un-A3
Fan 4 (right)	Un-A4
Power supply 1 (left)	Un-E1
Super UPIC connector (left)	Un-E1-T1
Super UPIC connector (right)	Un-E1-T2
Power supply 2 (right)	Un-E2
Super UPIC connector (left)	Un-E2-T1
Super UPIC connector (right)	Un-E2-T2
12X adapter connector port 0 (bottom connector - P0)	Un-P1-00
12X adapter connector port 1 (top conector - P1)	Un-P1-01
12X adapter connector port 0 (bottom connector - P0)	Un-P2-00
12X adapter connector port 1 (top conector - P1)	Un-P2-01
Media subsystem power connector	Un-P1-T3
Media subsystem power connector	Un-P2-T3
Integrated SCSI controller port	Un-P1-T5
Integrated SCSI controller port	Un-P1-T6
Integrated SCSI controller port	Un-P2-T5
Integrated SCSI controller port	Un-P2-T6

The following table provides location codes for parts that make up the server.

Table 2. 5797 and 5798 location codes
Failing item name	Physical location code
I/O planar book, plugs into I/O backplane	Un-P1
I/O planar book, plugs into I/O backplane	Un-P2
Disk drive backplane	Un-P3
Disk drive backplane	Un-P4
Disk drive backplane	Un-P5
Disk drive backplane	Un-P6
PCI adapter in slot 1	Un-P1-C1
PCI adapter in slot 2	Un-P1-C2
PCI adapter in slot 3	Un-P1-C3
PCI adapter in slot 4	Un-P1-C4
PCI adapter in slot 5	Un-P1-C5
PCI adapter in slot 6	Un-P1-C6
PCI adapter in slot 7	Un-P1-C7
PCI adapter in slot 8	Un-P1-C8
PCI adapter in slot 9	Un-P1-C9
PCI adapter in slot 10	Un-P1-C10
PHB (PCI bridge set) 1	Un-P1-C1 Un-P1-C2 Un-P1-C3 Un-P1-C4
PHB (PCI bridge set) 2	Un-P1-C5 Un-P1-C6 Un-P1-C7
PHB (PCI bridge set) 3	Un-P1-C8 Un-P1-C9 Un-P1-C10
PCI adapter in slot 1	Un-P2-C1
PCI adapter in slot 2	Un-P2-C2
PCI adapter in slot 3	Un-P2-C3
PCI adapter in slot 4	Un-P2-C4
PCI adapter in slot 5	Un-P2-C5
PCI adapter in slot 6	Un-P2-C6
PCI adapter in slot 7	Un-P2-C7
PCI adapter in slot 8	Un-P2-C8
PCI adapter in slot 9	Un-P2-C9
PCI adapter in slot 10	Un-P2-C10
IB riser port	Un-Px-T2
IB riser port	Un-Px-T1
PHB (PCI bridge set) 1	Un-P2-C1 Un-P2-C2 Un-P2-C3 Un-P2-C4
PHB (PCI bridge set) 2	Un-P2-C5 Un-P2-C6 Un-P2-C7
PHB (PCI bridge set) 3	Un-P2-C8 Un-P2-C9 Un-P2-C10
Fan 1 (left)	Un-A1
Fan 2	Un-A2
Fan 3	Un-A3
Fan 4 (right)	Un-A4
Power supply 1 (left)	Un-E1
Super UPIC connector (left)	Un-E1-T1
Super UPIC connector (right)	Un-E1-T2
Power supply 2 (right)	Un-E2
Super UPIC connector (left)	Un-E2-T1
Super UPIC connector (right)	Un-E2-T2
12X attachment top port	Un-P1-T1
12X attachment bottom port	Un-P1-T2
Media bay power connector	Un-P1-T3
Media bay power connector	Un-P2-T3
Integrated SCSI controller port	Un-P1-T4
Integrated SCSI controller port	Un-P1-T5
Integrated SCSI controller port	Un-P2-T4
Integrated SCSI controller port	Un-P2-T5
