You might need to replace a part in the storage enclosure. Parts in the system are categorized as customer-replaceable units (CRUs) or field-replaceable units (FRUs).
Table 1 lists the part numbers for the various replaceable unit parts.
| Part | Part number | FRU or customer replaceable |
|---|---|---|
| USB flash drive | 77P8505 | customer replaceable |
| 1 m FC cable | 39M5699 | customer replaceable |
| 5 m FC cable | 39M5700 | customer replaceable |
| SFP, BNT® SFP+ | 46C3449 | customer replaceable |
| SFP, 8 Gb Brocade | 88Y6419 | customer replaceable |
| 1m MLNX QSFP | 00W0051 | customer replaceable |
| 3m MLNX QSFP | 00W0059 | customer replaceable |
| 3m MLNX QSFP | 00W0071 | customer replaceable |
| 10m MLNX QSFP | 00W0079 | customer replaceable |
| ac power cord Argentina 2.8 m, 10 A / 250 V | 39M5068 | customer replaceable |
| ac power cord Japan 2.8 m, 12 A / 125 V | 39M5199 | customer replaceable |
| ac power cord Europe 2.8 m, 10 A / 250 V | 39M5123 | customer replaceable |
| ac power cord Italy 2.8 m, 10 A / 250 V | 39M5165 | customer replaceable |
| ac power cord Australia and New Zealand 2.8 m, 10 A / 250 V | 39M5102 | customer replaceable |
| ac power cord Denmark 2.8 m, 10 A / 250 V | 39M5130 | customer replaceable |
| ac power cord S. Africa 2.8 m, 10 A / 250 V | 39M5144 | customer replaceable |
| ac power cord UK 2.8 m, 10 A / 250 V | 39M5151 | customer replaceable |
| ac power cord Switzerland 2.8 m, 10 A / 250 V | 39M5158 | customer replaceable |
| ac power cord Israel 2.8 m, 10 A / 250 V | 39M5172 | customer replaceable |
| ac power cord China 2.8 m, 10 A / 250 V | 39M5206 | customer replaceable |
| ac power cord Brazil 2.8 m, 10 A / 250 V | 39M5240 | customer replaceable |
| ac power cord Taiwan 2.8 m, 10 A / 125 V | 39M5247 | customer replaceable |
| ac power cord US and Canada 2.8 m | 39M5081 | customer replaceable |
| Power jumper cord - 2 m | 39M5508 | customer replaceable |
| Fibre channel / FCoE adapter card | 00DH919 | FRU |
| iSCSI adapter card | 00DJ330 | FRU |
| Canister assembly | 00DH520 | FRU |
| Power interposer board | 00DH522 | FRU |
| LED panel | 00DH523 | FRU |
| Bezel | 00DH524 | FRU |
| Cover assembly | 00DH525 | FRU |
| Midplane | 00DH521 | FRU |
| Power supply unit, 1300W | 00FX880 | FRU |
| Flash module, 1TB | 00DJ269 | FRU |
| Flash module, 2TB | 00DJ315 | FRU |
| Flash module, 4TB | 00DJ316 | FRU |
| Flash module filler - single width | 00DH296 | FRU |
| Flash module filler - double width | 00DH297 | FRU |
| Battery module | 00DH517 | FRU |
| Fan module | 00DH516 | FRU |
| Rail kit, 2U rack | 45W8836 | FRU |
Parts diagrams

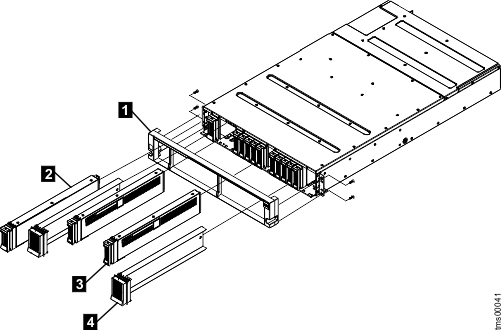

Figure 1 shows the FRU parts on the front of the enclosure.
Figure 1. FRU
parts on the front of the enclosure
Table 2 identifies
the FRU parts on the front of the enclosure.
| Part | Part number |
|---|---|
| 1 Bezel | 00DH524 |
| 2 Battery module | 00DH517 |
| 3 Flash module, 1 TB | 00DJ269 |
| 3 Flash module, 2 TB | 00DJ315 |
| 3 Flash module, 4 TB | 00DJ316 |
| 4 Flash module filler - double width | 00DH297 |

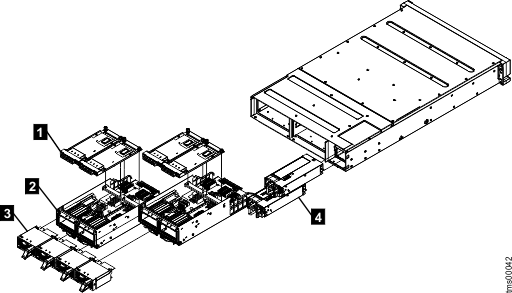

Figure 2 shows the FRU parts on the rear of the enclosure.
Figure 2. FRU parts on the rear of the enclosure
Table 3 identifies
the FRU parts on the rear of the enclosure.
| Part | Part number |
|---|---|
| 1 Adapter card, Fibre channel / FCoE | 00DH919 |
| 1 Adapter card, iSCSI | 00DJ330 |
| 2 Canister assembly | 00DH520 |
| 3 Fan module | 00DH516 |
| 4 Power supply unit, 1300W | 00FX880 |

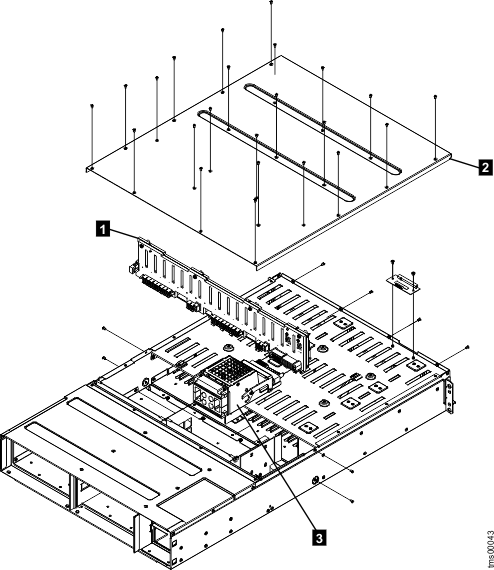

Figure 3 shows the FRU parts in the interior of the enclosure.
Figure 3. Interior parts
Table 4 identifies
the interior parts.
| Part | Part number |
|---|---|
| 1 Midplane | 00DH521 |
| 2 Cover | 00DH525 |
| 3 Power interposer board (PIB) | 00DH522 |
