Data Elements

A Data element is a unit of EDI data. For example, sender ID and receiver ID are data elements.

Each EDI standard contains a set of data elements specific to that standard. These data elements are stored in a data dictionary that provides the following information about each data element:

  • Name of the element
  • Description of the element
  • Data type: numeric, alphanumeric, or date
  • Minimum length of the element
  • Maximum length of the element
  • Element type: fixed-length or variable-length

    Fixed-length data is a type of data element or segment with a specific number of characters. For example, a company name data element might have a fixed length of 35 characters.

    Variable-length data is a type of data element or segment with no fixed number of characters. For example, a sender ID data element can be one to fifteen characters in length.

    A Data element separator is placed before each data element in a segment to mark the beginning of that data element. Without data element separators, an EDI translator does not know where one variable-length data element ends and another begins.

Data element separators must be defined in the EDI data format. When defining a data element separator, select a character that is not likely to appear in the data. This will help prevent translation errors that might occur during processing. Common data element separators are the asterisk (*), used in the ANSI X12 standard, and the plus sign (+), used in the UN/EDIFACT and TRADACOMS standards.

An EDI standard specifies where a data element appears in a segment. If a data element contains information, the information is displayed between the data element separators. If a data element does not contain information, there is only a space between the data element separators. If the last data element in a segment does not contain information, nothing appears for that data element.

The following figure shows a data segment that has four data elements separated by asterisk (*) data element separators. However, there is no data for the third of the four data elements, which is shown by two consecutive asterisks.

Information about this image can be found in the surrounding text.

Composite Data Elements

A composite data element is a data element made up of smaller units called sub-elements. A sub-element separator character, such as a colon (:), marks the beginning of the sub-element.

For example, ITEMNO is a data element in a purchase order. ITEMNO consists of three sub-elements, the part number, an aisle number, and a bin number. If part number 345 is located in aisle 9, bin location G, the data element ITEMNO output would be 345:9:G.

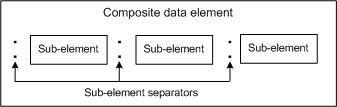

The following figure shows a composite data element with a colon (:) sub-element separator:

Information about this image can be found in the surrounding text. Information about this image can be found in the surrounding text.
