Layer 7 routing

You can use a Layer 7 or Content Based Routing capable load balancer to meet the same domain requirement.

Diagram Key: Abbreviation	Product or Application
ssdcs	Sterling™ Sensitive Data Capture Server
sfs	Sterling Field Sales

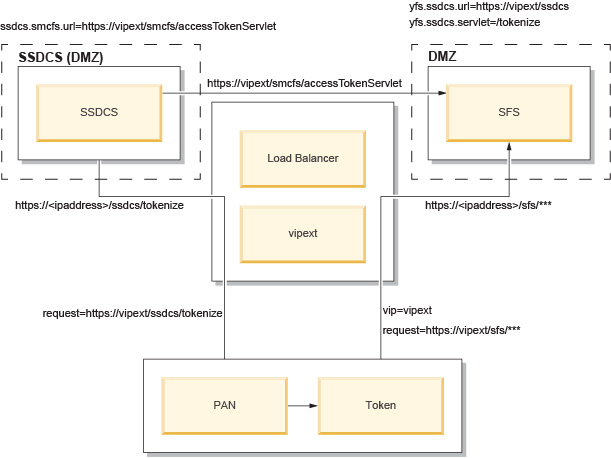

In the diagram above, requests from the browser are sent to a load balancer to the virtual IP (VIP) https://vip.acme.com. The load balancer is configured to route the traffic to either the Sterling Sensitive Data Capture Server or Sterling Order Management System Software applications based on the URI shown to the right of the host and port. For example, if the load balancer is an F5 Big-IP, you could set up the following iRule to route requests to the appropriate load balancing pool (of servers) based on the URI.

when HTTP_REQUEST {
       set uri [HTTP::uri]
       if (uri starts_with “/ssdcs”) {
           		pool pool_ssdcs
       } elseif (uri starts_with “/smcfs”) {
            	pool pool_smcfs
       } else {
             pool pool_smcfs
       }
}

In this example, the Distributed Order Management and Sterling Sensitive Data Capture Server applications are deployed with the context root /smcfs and /ssdcs, respectively. During the normal course of interaction, the F5 iRule will route all HTTP requests with the URL https://vip.acme.com/smcfs to the pool of Distributed Order Management application servers. When the iFrame at the browser sends a tokenization request to https://vip.acme.com/ssdcs, the Layer 7 routing load balancer will send the request to the pool of Sterling Sensitive Data Capture Server servers.

You must configure the following parameters in the Sterling Order Management System Software applications and Sterling Sensitive Data Capture Server:

yfs.ssdcs.url — This parameter provides the Sterling Order Management System Software applications with the location of the Sterling Sensitive Data Capture Server.
ssdcs.smcfs.url — The corresponding parameter tells the Sterling Sensitive Data Capture Server where to find a Sterling Order Management System Software application to verify that the tokenization request came from a valid user.
