PCIe2 4-port (10 Gb + 1 GbE) Copper SFP+RJ45 Adapter (FC EN0U and FC EN0V; CCIN 2CC3)

Learn about the specifications and operating system requirements for the feature code (FC) EN0U and FC EN0V adapter.

Overview

The PCIe2 4-port (10 Gb + 1 GbE) Copper SFP+RJ45 Adapter is a PCI Express (PCIe) generation 2, x8, short form-factor adapter.
  • The FC EN0U is a short, full height Copper SFP adapter.
  • The FC EN0V is a short, low-profile Copper SFP adapter.
The adapter provides two 10 Gb copper twinax small form-factor pluggable (SFP+) ports and two 1 Gb RJ45 ports. This adapter provides a PCIe 2.0 host bus interface. The adapter supports the Ethernet network interface controller (NIC) function. The adapter is a high-performance adapter that consolidates traffic for networking. The link aggregation and failover features of the adapter make it suitable for critical network applications that require redundancy and high availability.

The two 10 Gb are SFP+ and do not include a transceiver. Active Copper twinax cables up to 5 meter in length are supported such as provided by feature codes EN01, EN02 or EN03. A transceiver is included with these cables. See Cables for details. Each 10 Gb port provides Ethernet connectivity with a nominal data rate of 10 Gbps (gigabits per second). Figure 1 shows the FC EN0U adapter. Figure 2 shows the FC EN0V adapter.

Each of the 1 Gb RJ45 port provides Ethernet connectivity at a data rate of 1 Gbps. Each of the 1 Gb ports is connected with a 4-pair, CAT-5 unshielded twisted pair (UTP) cable or with a cable of higher specification, and is supported for distances of up to 100 meters. In addition to 1 Gb (1000 Mb) networks, 100 Mb networks are also supported.

The adapter provides the following features:
  • The adapter is a PCIe2 NIC network convergence adapter.
  • The 10 Gb ports can function in the NIC mode.
  • The adapter can be used as the host local area network (LAN) adapter.
  • The adapter supports interrupt moderation to deliver increased performance while significantly reducing processor utilization.
  • The adapter supports dual port operation in any PCIe2 or greater slot.
  • The adapter supports auto-negotiation, full-duplex only.
  • The adapter supports multiple media-access control (MAC) per interface.
  • The adapter supports integrated media-access control (MAC) and physical layer (PHY).
  • The adapter supports the following standards for the different ports and functions:
    • IEEE 802.3ae in the 10 GbE ports
    • 802.3ab in the 1 GbE ports
    • Ether II and IEEE 802.3 for encapsulated frames
    • 802.1p for setting up priority levels in tagged VLAN frames
    • 802.1Q for VLAN tagging
    • 802.3x for flow control
    • 802.3ad for load-balancing and failover
    • IEEE 802.3ad and 802.3 for link aggregation
  • The adapter provides message signal interrupts (MSI), MSI-X, and support of legacy pin interrupts.
  • The adapter supports jumbo frames up to 9.6 KB.
  • The adapter supports gigabit EtherChannel (GEC) with the existing software.
  • The adapter supports TCP checksum offload transmission control protocol (TCP), user datagram protocol (UDP), TCP segmentation Offload (TSO) for IPv4 and IPv6.
  • Supports TCP segmentation or large send offload
  • Supports EEPROM-SPI and single EEPROM
Figure 1. PCIe2 4-port (10 Gb + 1 GbE) Copper SFP+RJ45 Adapter (FC EN0U)
PCIe2 4-port (10 Gb + 1 GbE) Copper SFP+RJ45 Adapter (FC EN0U)
Note: The ports are numbered from top to bottom as T1, T2, and so on for the AIX® and IBM® i operating systems.

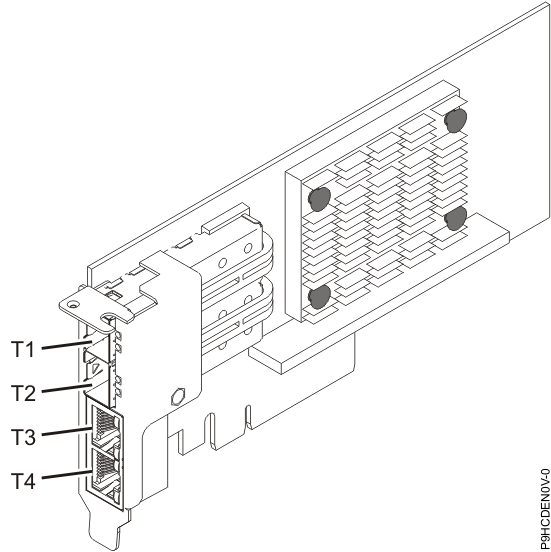

Figure 2. PCIe2 LP 4-port (10 Gb + 1 GbE) Copper SFP+RJ45 Adapter (FC EN0V)
PCIe2 LP 4-port (10 Gb + 1 GbE) Copper SFP+RJ45 Adapter (FC EN0V)
Note: The ports are numbered from top to bottom as T1, T2, and so on for the AIX® and IBM® i operating systems.

Specifications

Item
Description
Adapter FRU number
02JD574
Wrap plug FRU number
74Y7010 (Twinax wrap plug)
10N7405 (1 Gb UTP wrap plug)
Note: Wrap plugs are not included with the card and cannot be purchased from IBM®.
I/O bus architecture
PCIe2 x8
Slot requirement
For details about slot priorities, maximums, and placement rules, see PCIe adapter placement rules and slot priorities and select the system you are working on.
Voltage
3.3 V
Form factor
Short, with full-height tailstock (FC EN0U)
Short, with low-profile tailstock (FC EN0V)
Cables
See Cables for details.

Cables

This adapter feature requires the use of compatible SFP+, 10 Gbps, copper, twinaxial, active, Ethernet cables. See Figure 3 for a view of the cable top and cable bottom. These cables are compliant with industry standard specifications SFF-8431 Rev 4.1 and SFF-8472 Rev 10.4, and all applicable IBM requirements.
Note: These cables are EMC Class A compliant.
See Table 1 for details about the feature codes.

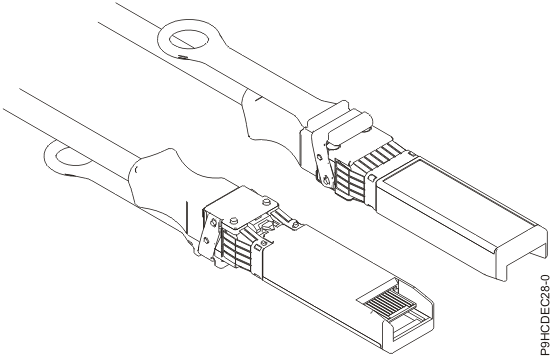

Figure 3. Top and bottom view of the cable
Image of the Cable
Table 1. Feature code, CCIN, and part number for varying lengths of the cable
Cable length Feature code CCIN Part number
1 m (3.28 ft) EN01 EF01 46K6182
3 m (9.84 ft) EN02 EF02 46K6183
5 m (16.4 ft) EN03 EF03 46K6184

Operating system or partition requirements

If you are installing a new feature, ensure that you have the software that is required to support the new feature and you must determine any prerequisites that must be met for this feature and the attached devices. For information about operating system and partition requirements, see one of the following topics:
This adapter requires the following drivers:
  • AIX®: devices.pciex.e4148a1614109304 for SFP+ optical ports and devices.pciex.e4148a1614109404 for RJ45 ports
  • Linux: bnx2x driver
