PCI-X Quad-Channel Ultra320 SCSI RAID Adapter (FC 0649, 5582, 5583, 5738, 5777; CCIN 571E)

Learn about the features and specifications for the PCI-X Quad-Channel Ultra320 SCSI RAID Adapter for IBM® System i® models.

Feature codes

571E is the custom card identification number (CCIN) on the adapter.
0649 is direct-attach feature code for the adapter on AIX® and Linux partitions.
5738 is the IOP-based feature code for the adapter for the IBM i operating system.
5777 is the IOPless feature code for the adapter for the IBM i operating system.
The 5582 includes an IOP-based 5738 PCI-X Quad-Channel Ultra320 SCSI RAID Adapter and a CCIN 574F auxiliary-write cache IOA.
The 5583 includes an IOPless, 5777 PCI-X Quad-Channel Ultra320 SCSI RAID Adapter and a CCIN 574F auxiliary-write cache IOA

64-bit, 3.3 volt
Address support for up to 60, 16-bit SCSI physical disk drives on 4 independent internal SCSI buses. (The actual number of drives is limited by physical device placement limitations.)
Four internal (only) U320 SCSI ports. Internally attached Ultra320 devices are designed to run at a data rate of up to 320 MB per second on systems that have internal backplanes that are capable of supporting Ultra320 speeds.
Utilizes Low Voltage Differential (LVD) drivers and receivers. It can support single ended (SE) and LVD devices on SCSI bus 1, but LVD devices only on other SCSI busses.
Up to 1.5 GB of compressed write cache, and up to 1.6 GB of compressed read cache
- 390 MB/1.5 GB compressed write cache.
- 415 MB/1.6 GB compressed read cache.
Removable cache card with a concurrently maintainable battery. The removable transportable cache card can be used by service providers for cache data recovery procedures.
Peripheral Component Interconnect-X (PCI-X) support
RAID capability:
- Supports RAID and non-RAID DASD, tape, and optical devices.
- 0649 provides RAID 0, 10, 5, 6 capability.
- 5582 and 5583 provide RAID 5 or RAID 6 capability.
  - A minimum of 3 disk drives is required for RAID 5.
  - A minimum of 4 disk drives is required for RAID 6.
  - 574F Auxiliary Cache IOA is required for either RAID level.
    For information about using an auxiliary-write cache IOA, see Auxiliary-write cache IOA (FC 0641, 0649, 5582, 5583, 5590; CCIN 574F).

Item	Description
Adapter FRU number	42R5130
Cache battery FRU number	39J5554
Cables	Attachment cables are included with the attaching subsystem or device.
I/O bus architecture	PCI-X compliant
Slot requirement	One available 3.3 volt PCI or PCI-X slot when the disk controller adapter is used by itself. Two available 3.3 volt PCI or PCI-X slot when the disk controller adapter is used with an auxiliary-write cache adapter.
Operating system or partition requirements	IBM i: IBM i V5R3 and V5R3m5 IBM i V5R4 with PTFs To determine if there are any existing PTF prerequisites, see the IBM Prerequisite Web site at http://www-912.ibm.com/e_dir/eServerPrereq.nsf.
	AIX AIX 5L™ Version 5.2 with the 5200-10 Technology Level, or later AIX 5L Version 5.3 with the 5300-06 Technology Level, or later
	Linux Red Hat Enterprise Linux version 4 U4, or later SUSE Linux Enterprise Server 10, or later
Installation Information	For system-specific adapter placement information, see the PCI adapter placement for machine types 82xx and 91xx or the PCI adapter placement for machine type 94xx topic collections. .

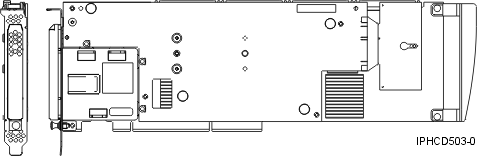

Figure 1. Adapter side view and end view

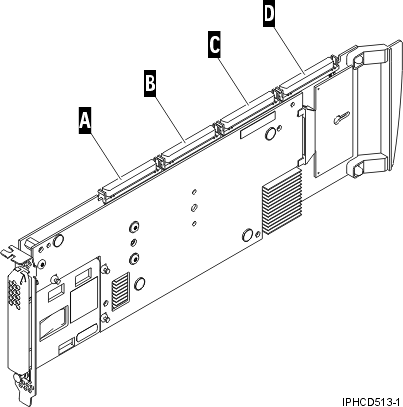

Figure 2. Adapter SCSI connectors Side view
