PCIe SAS RAID card comparison
Use the tables in this topic to compare the features of the various PCI Express (PCIe) SAS RAID cards for IBM® i. There are also images of adapters for you to view.
| Features | 57B3 |
|---|---|
| Description | PCIe x8 Ext Dual-x4 3 Gb SAS adapter |
| Form factor | PCIe x8 |
| Physical links | 8 (two mini SAS 4x connectors) |
| Supports Removable Media devices only (Tape/DVD) | Yes |
| Dual storage IOA configuration | No |
| Requires dual storage IOA configuration | No |

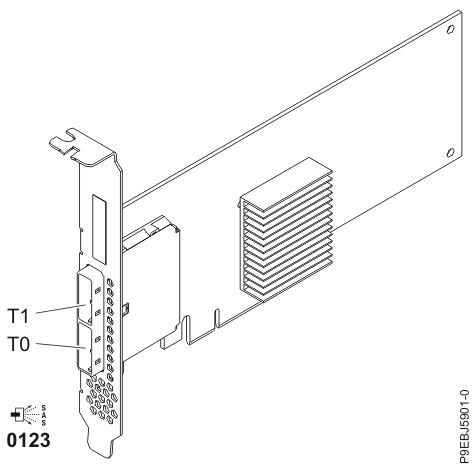

Adapter graphics
View the SAS RAID controllers.
